From: Cracking pattern of tissue slices induced by external extension provides useful diagnostic information

Figure 4

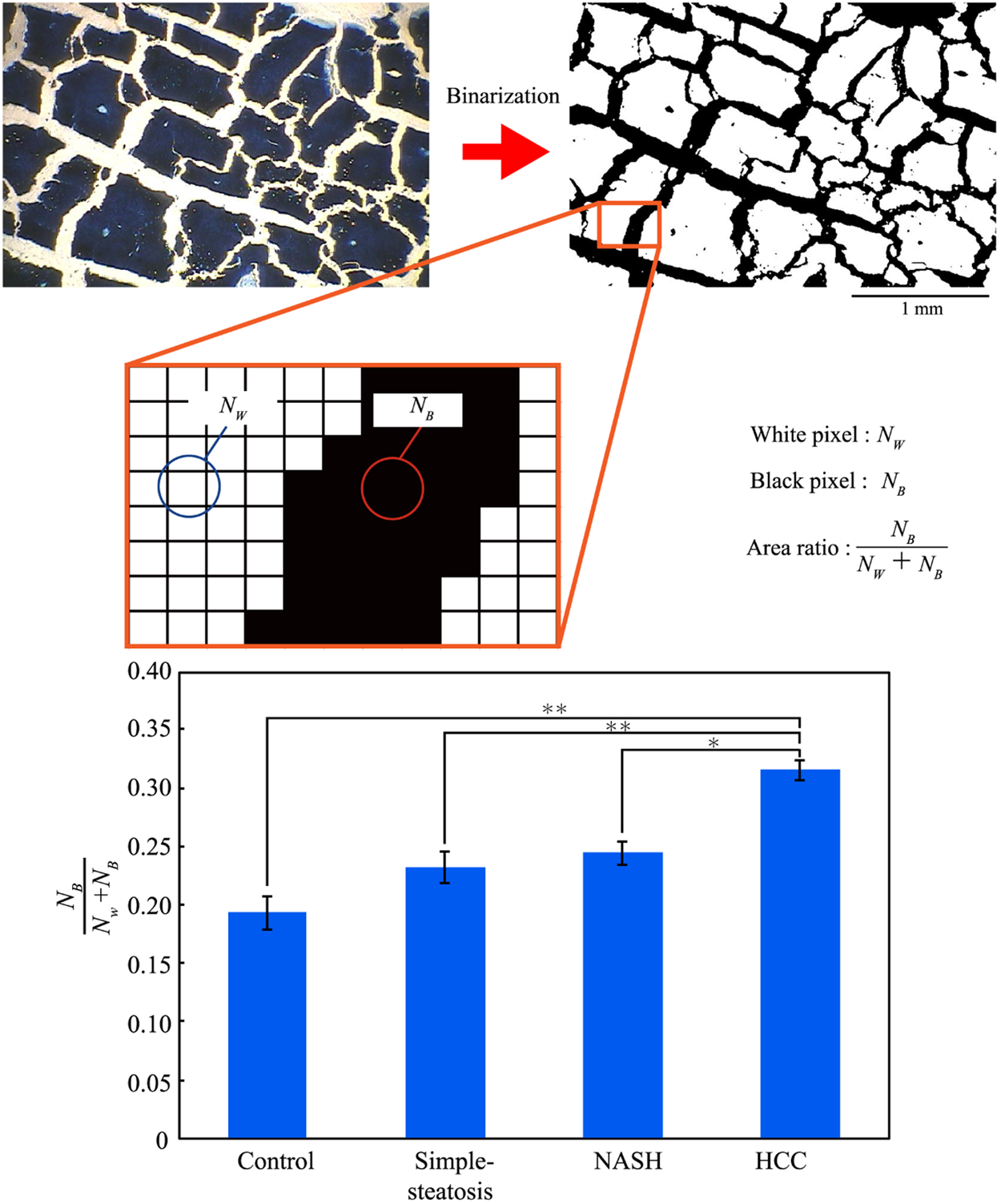

Schematic illustration of the evaluation of the cracking area. White and black pixels in the binarized image represent remaining tissue and cracks respectively. The bar graph shows the difference in the areas of cracks in tissues with different disease states. (Mean ± SE, *p < 0.05, **p < 0.01, head count of the mouse N = 4).
