From: Thermal spin fluctuations in CoCrFeMnNi high entropy alloy

Figure 1

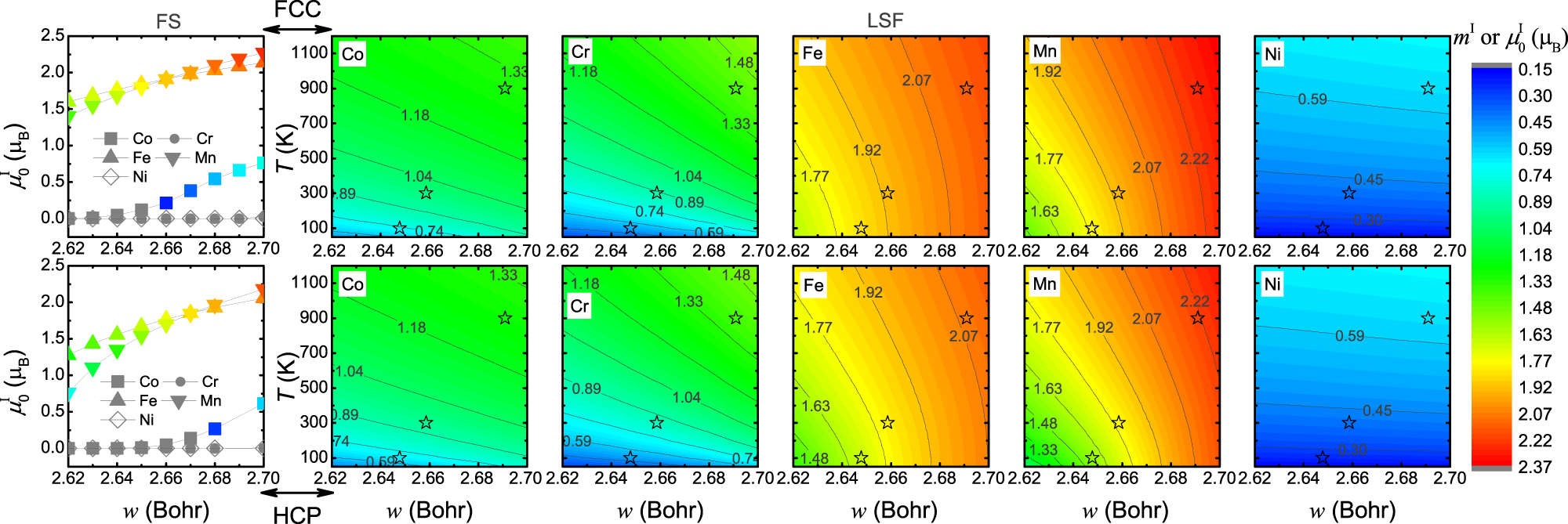

Magnetic moments of alloy components in PM CoCrFeMnNi for the fcc (upper panels) and hcp (lower panels) structure. The first column shows the equilibrium magnetic moments {\({\mu }_{0}^{{\rm{I}}}\)} (I = Co, Cr, Fe, or Ni) as a function of volume obtained from the conventional FS calculations. The contour plots show the mean magnetic moments {mI} for the alloy components as a function of volume and temperature when accounting for the LSFs. The experimental volumes40 at 100, 300 and 900 K are indicated by stars.
