Figure 3
From: Thermal spin fluctuations in CoCrFeMnNi high entropy alloy

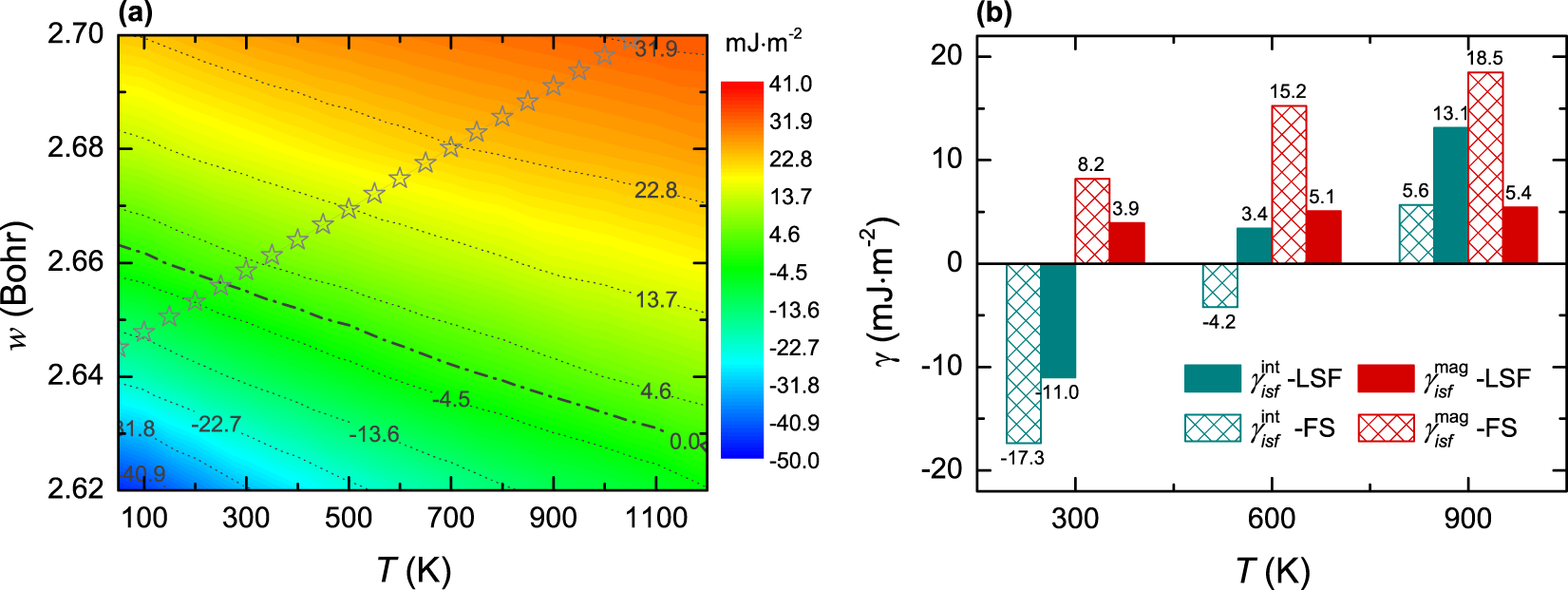

The contour in panel (a) plots for the stacking fault energy γisf as a function of volume and temperature when accounting for LSFs. The thermal lattice expansion measured in ref.40 is indicated by stars. The bars in panel (b) display the partial contributions to γisf from the internal energy \({\gamma }_{isf}^{{\rm{int}}}\) and the magnetic entropy \({\gamma }_{isf}^{{\rm{mag}}}\), i.e., \({\gamma }_{isf}={\gamma }_{isf}^{{\rm{int}}}+{\gamma }_{isf}^{{\rm{mag}}}+2\sigma \), at the given temperatures for the LSF and FS calculations.
