Figure 3
From: Deformation mechanism of innovative 3D chiral metamaterials

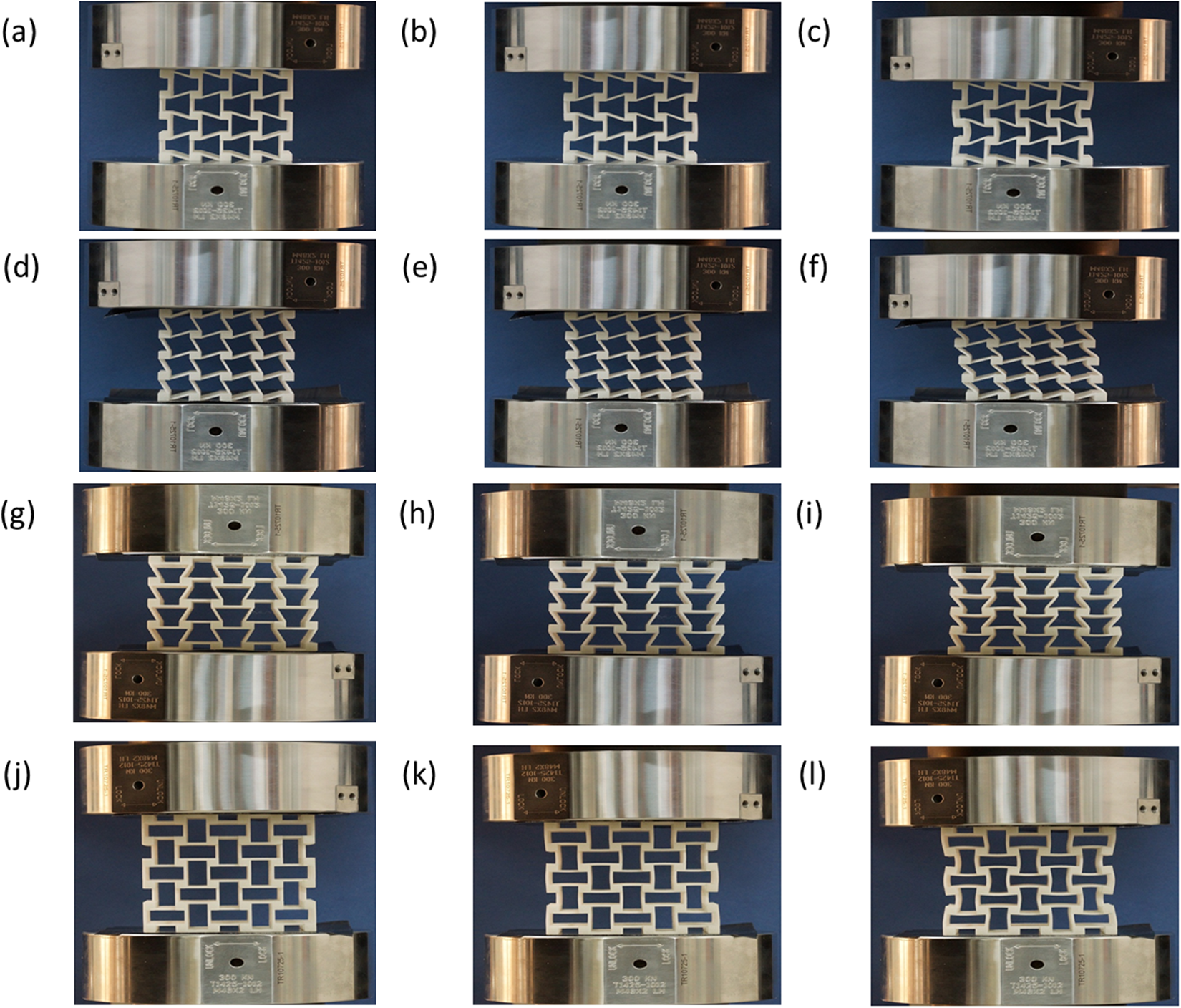

Deformation of 3D chiral- chiral- antichiral metamaterials under uniaxial compression test condition at different compression strain level along z antichiral direction (a) εz = 2%, (b) εz = 5%, (c) εz = 10%; Deformation of 3D chiral- chiral- antichiral metamaterials under uniaxial compression test condition at different compression strain level along y chiral direction (d) εy = 2%, (e) εy = 5%, (f) εy = 10%; Deformation of 3D chiral- antichiral- antichiral metamaterials under uniaxial compression test condition at different compression strain level along z chiral direction (g) εz = 2%, (h) εz = 5%, (i) εz = 10%; Deformation of 3D chiral- antichiral- antichiral metamaterials under uniaxial compression test condition at different compression strain level along y antichiral direction (j) εy = 2%, (k) εy = 5%, (l) εy = 10%.
