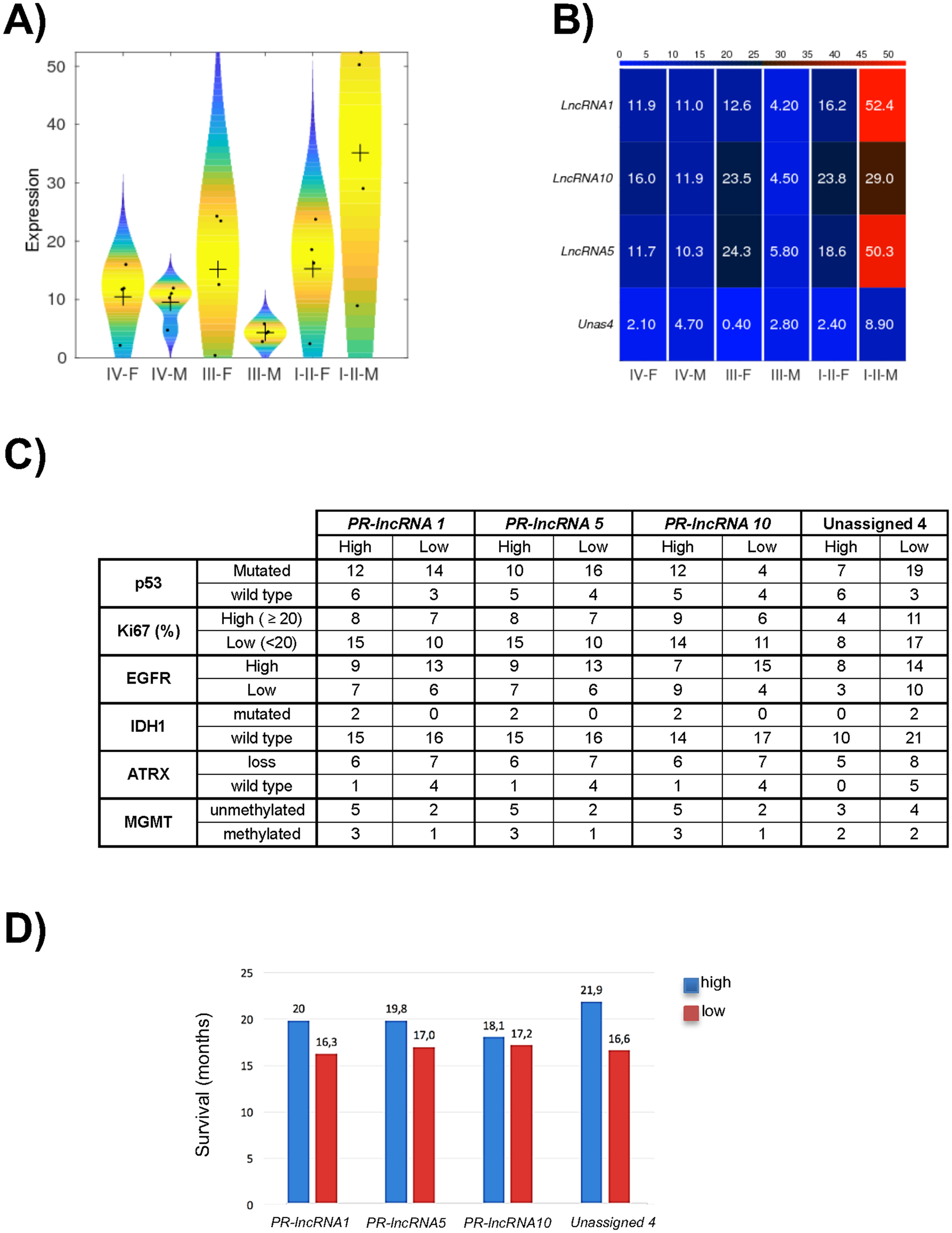

Figure 2
From: PR-LncRNA signature regulates glioma cell activity through expression of SOX factors
Correlation between PR-LncRNA expression and patient clinical characteristics. (A) Violin plot associated to the distribution of the expression of the PR-LncRNAs in gliobastoma (IV), anaplastic (III) and low-grade glioma (II) separated by sex (M - male, F - female). The + denote the mean values of the distributions and the black dots are the expression values. (B) Heat map of the expression of the studied PR-LncRNAs separated by sex. Redder color corresponds to higher expression. The colorbar on the top codifies the expression level. (C) Correlation between expression of PR-LncRNAs and molecular markers frequently altered in glioma, namely, p53, Ki67, EGFR, IDH1, ATRX and MGMT. (D) Median overall survival stratified by level of each of the PR-LncRNAs studied.
