Figure 1
From: Near Field Breast Tumor Detection Using Ultra-Narrow Band Probe with Machine Learning Techniques

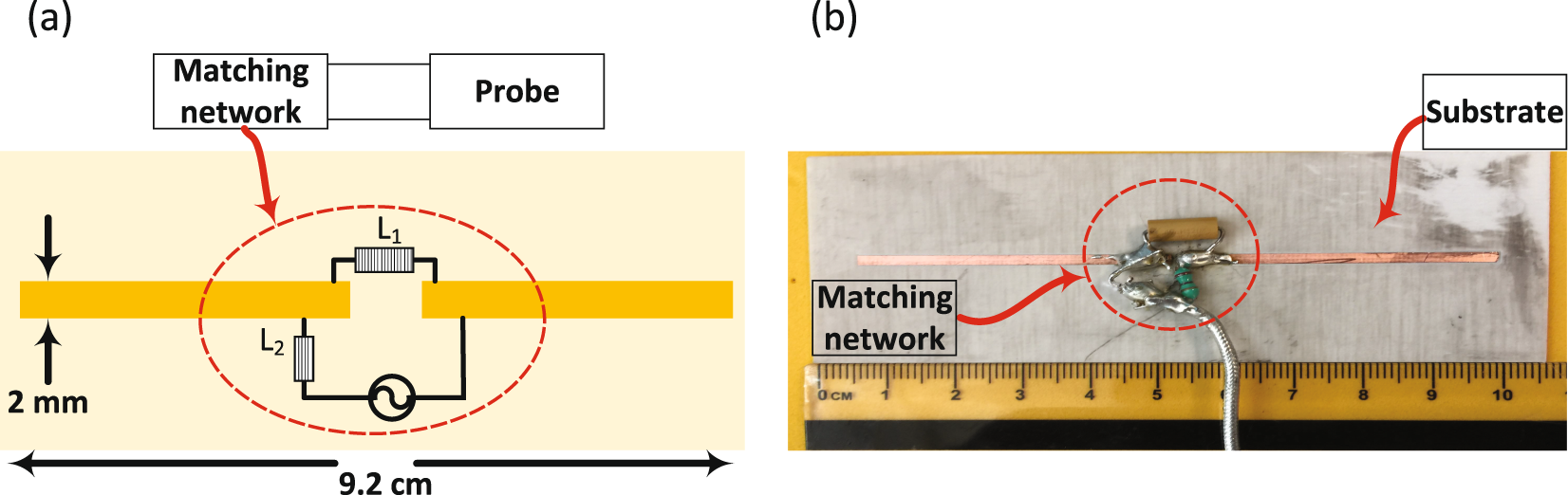

The printed electrically-small probe hosted on a dielectric substrate. (a) Schematic showing probe and the location of the matching network elements. (b) Photo of the fabricated probe and the matching network.
