Figure 2
From: Tissue degeneration in ALS affected spinal cord evaluated by Raman spectroscopy

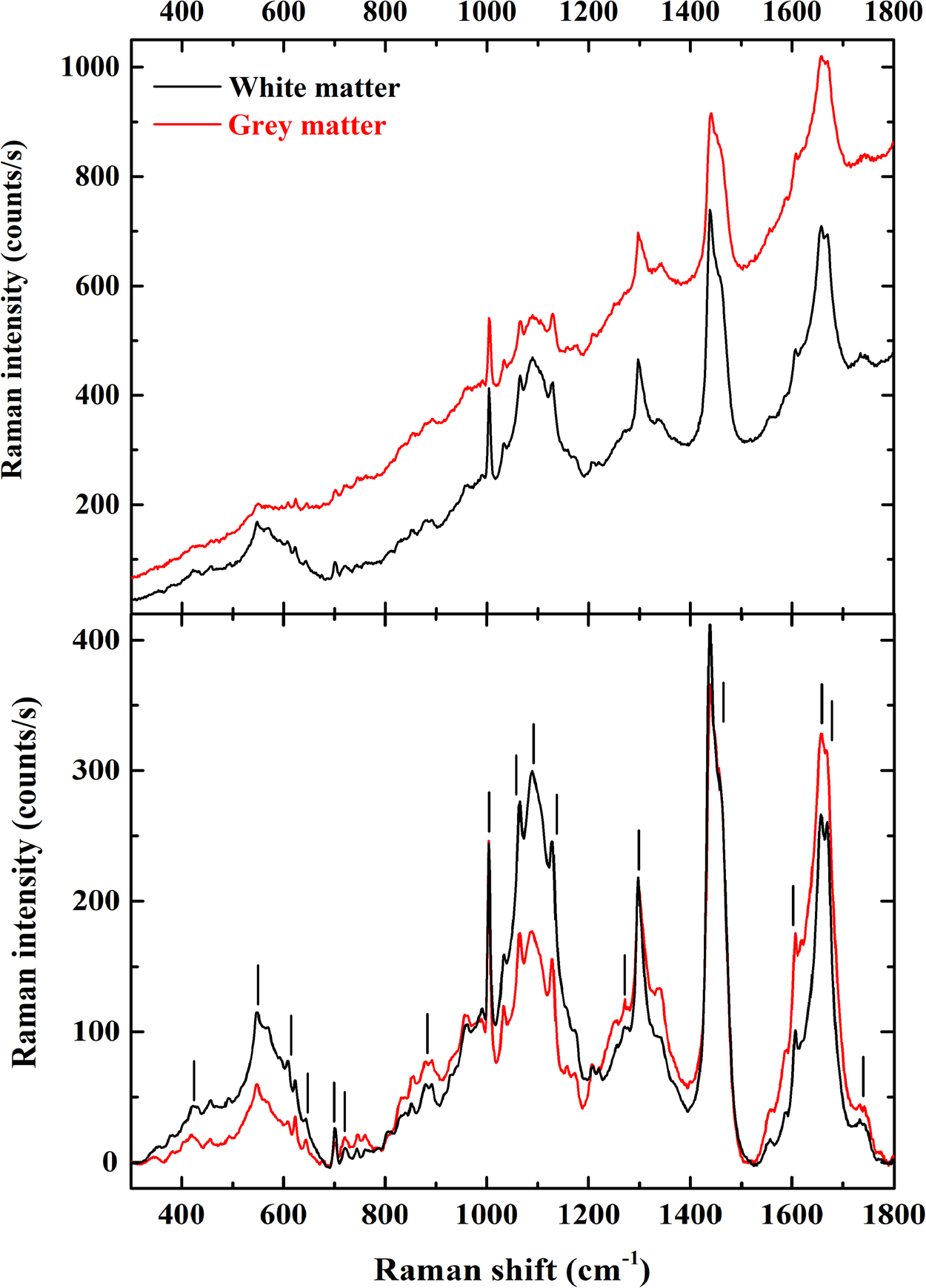

(above) Representative Raman spectra from the white matter region (black trace) and from the grey matter (red trace) of healthy mouse spinal cord section. The exposure time was 10 seconds for 12 accumulations with 6 mW/μm2 laser power. (below) Baseline corrected trace obtained averaging 21 white matter spectra (in black) and 21 grey matter spectra (in red) of healthy mouse spinal cord section. The marked bands are identified in the supplementary information.
