Figure 2 | Scientific Reports

Figure 2

From: Viral communities associated with porcine respiratory disease complex in intensive commercial farms in Sichuan province, China

Figure 2

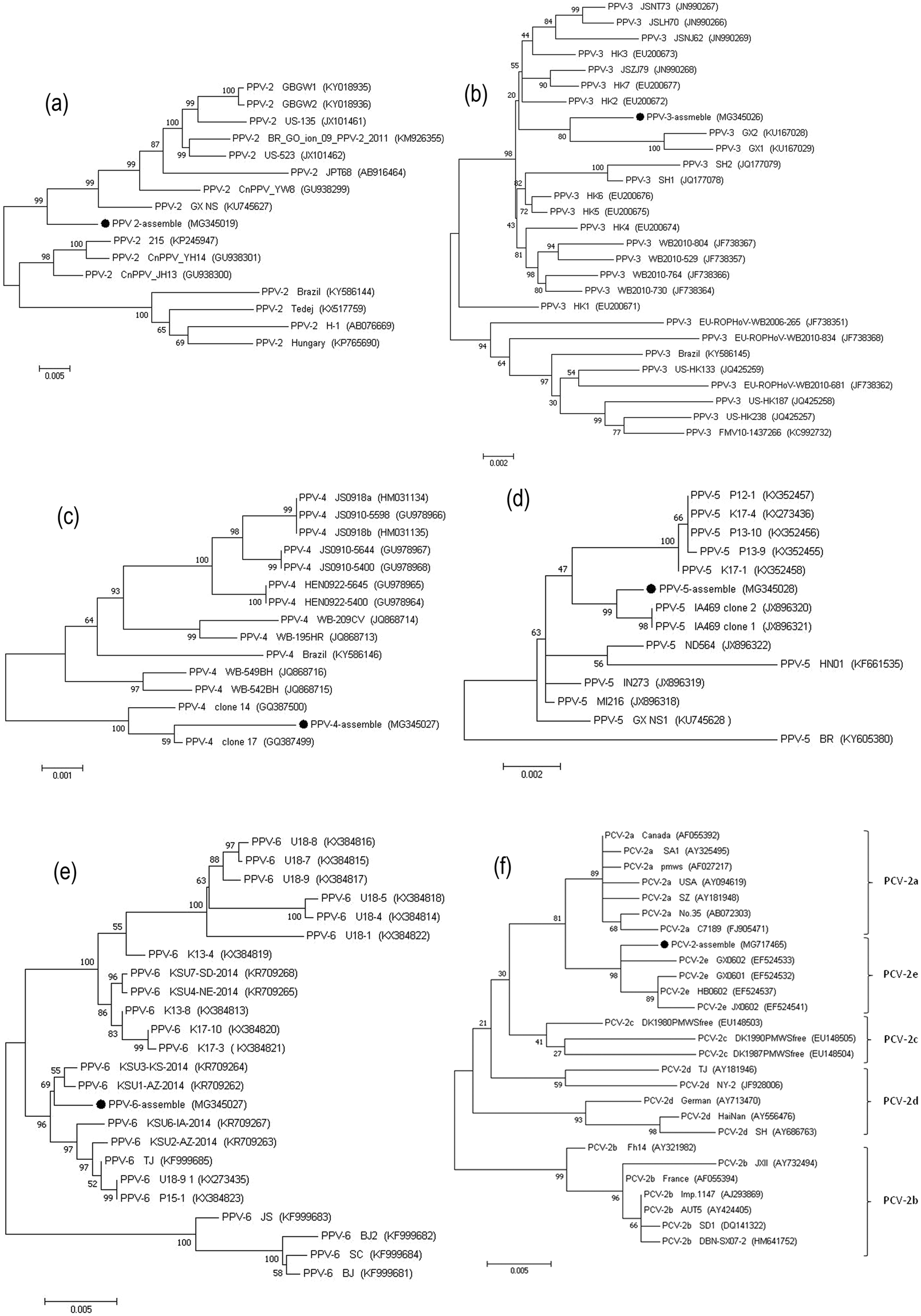

Phylogenetic analyses of six complete or near-complete viral genome sequences: PPV-2 (a), PPV-3 (b), PPV-4 (c), PPV-5 (d), PPV-6 (e), PCV-2 (f). Phylogenetic trees were constructed with MEGA 7.0 software by the maximum-likelihood method with 1,000 bootstrap replicate values. The viral assembly sequences characterized in this study are marked by black circles. GenBank accession numbers for the viral reference strains are shown in parentheses.
