Figure 4 | Scientific Reports

Figure 4

From: Gut microbiota-mediated protection against influenza virus subtype H9N2 in chickens is associated with modulation of the innate responses

Figure 4

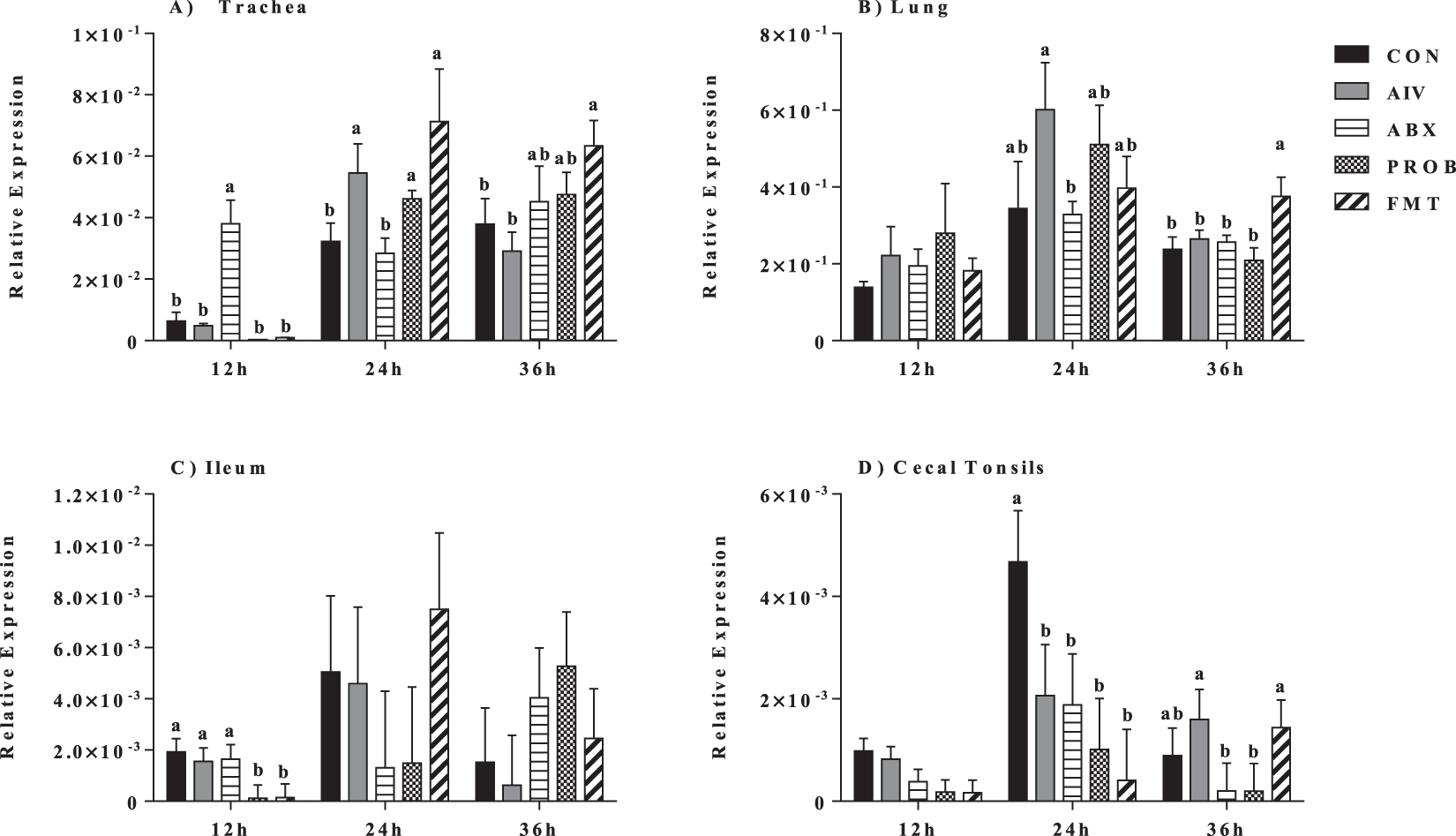

Relative expression of IFN-α in the trachea, lung, ileum and cecal tonsils. Samples (n = 6) were collected at 12 h, 24 h and 36 h post infection, and mRNA expression relative to β-actin was measured using quantitative real-time PCR. Bars with different letters at a time point differ significantly from each other (P < 0.05).
