Figure 9

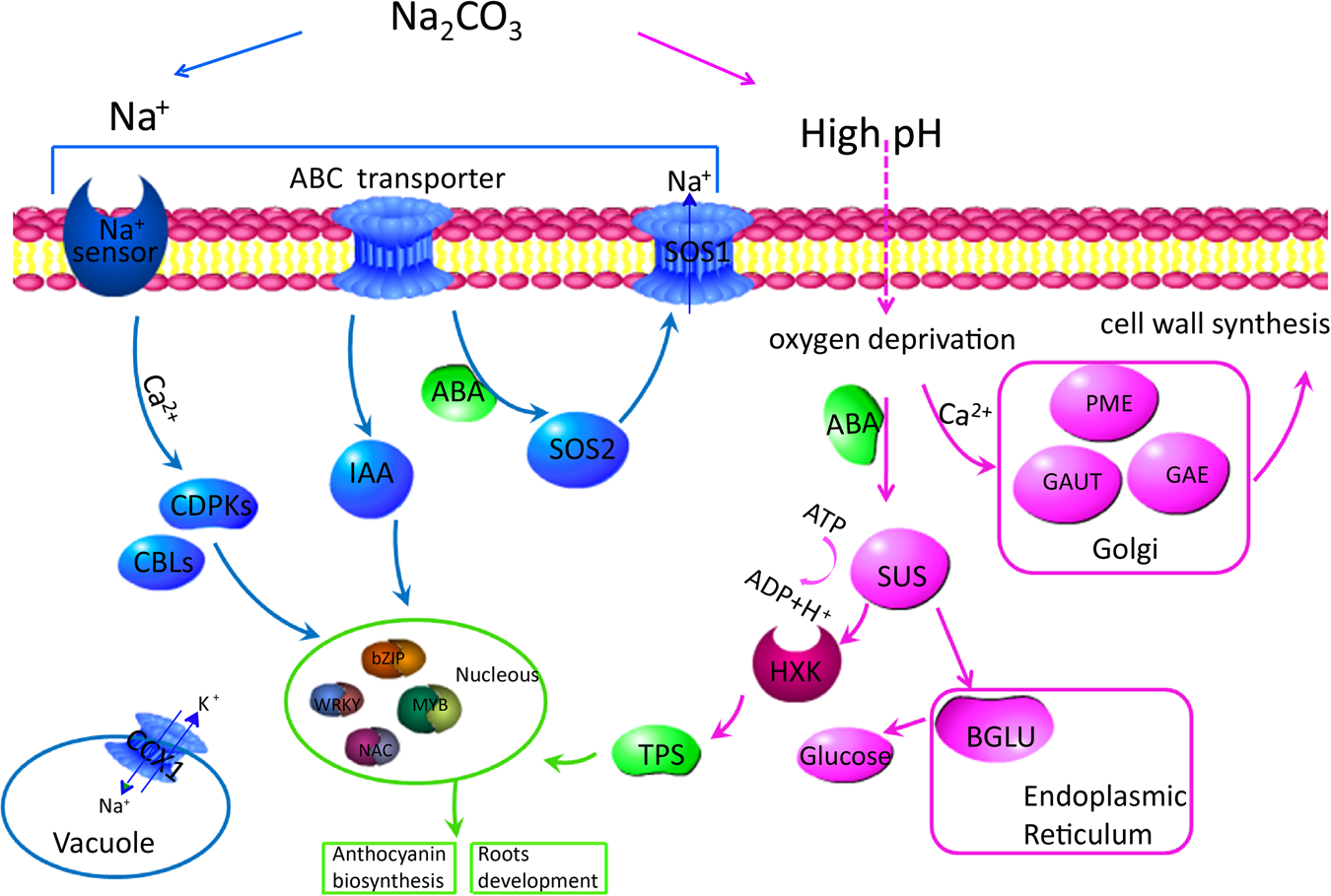

Model of the regulatory networks in response to Na⁺ stress and high pH. The left blue part of the networks is related to Na⁺ stress, the right red part of the networks is related to high pH. The crossed green part is related to both Na⁺ stress and high pH.
