Figure 3
From: Improved high temperature radiation damage tolerance in a three-phase ceramic with heterointerfaces

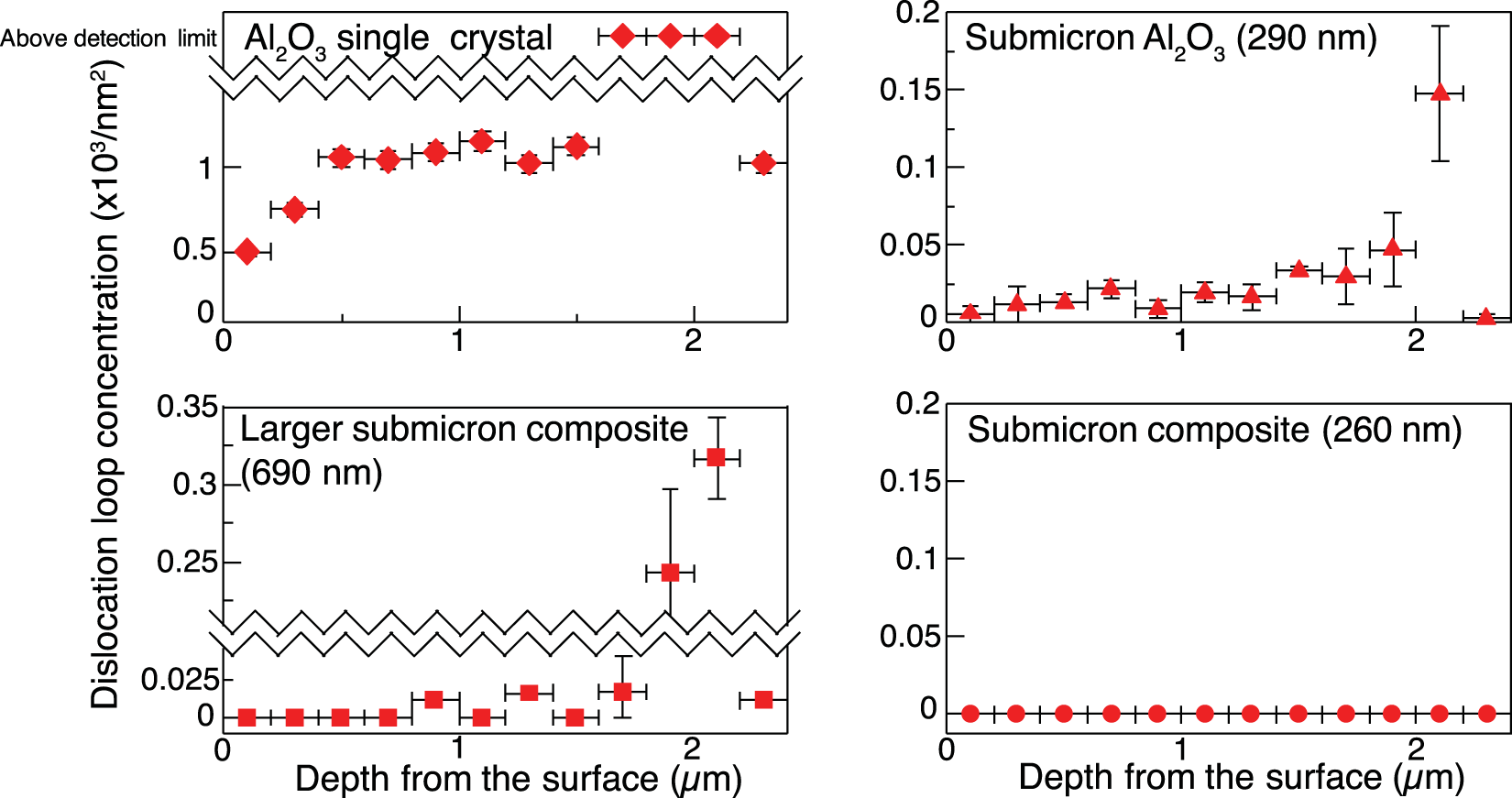

Areal dislocation loop concentrations with respect to the sample depth in Al2O3 single crystal, submicron Al2O3, Al2O3 phase in large grain composite and Al2O3 phase in the submicron composite. At the Al2O3 single crystal damage peak, dislocations are too concentrated to count. The error bars are the standard deviation generated from three different areas for the concentrations and the depth range used for each calculation.
