Figure 6
From: Comparison of frequency and strain-rate domain mechanical characterization

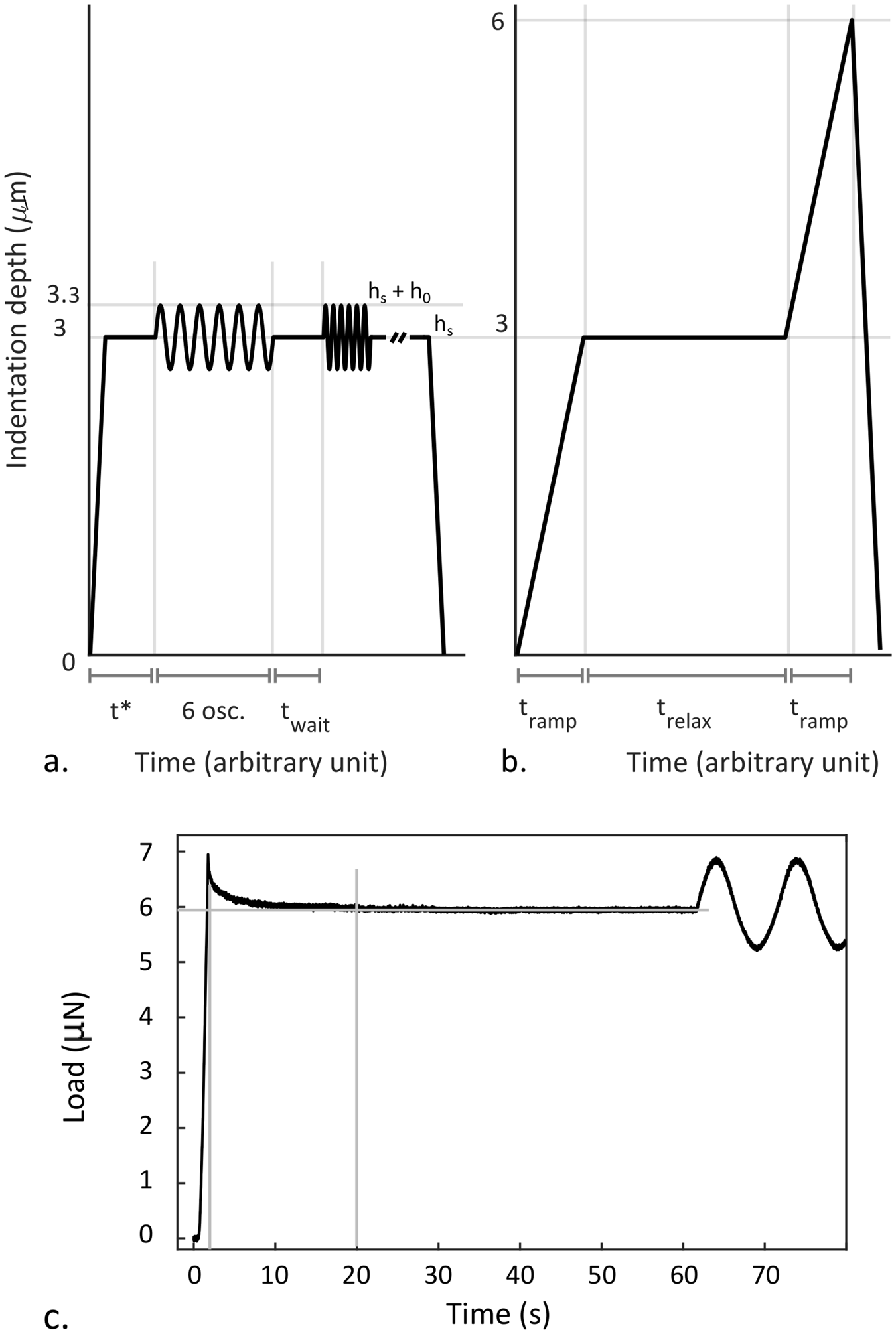

Prescribed indentation profiles for (a) DMA and (b) nano-\(\dot{\varepsilon }M\) measurements. (c) Experimental data showing that the load plateau after ramping to hs = 3 μm was reached in less than 20 s, as highlighted by the light grey lines.
