Figure 2
From: Integrative effects of dystrophin loss on metabolic function of the mdx mouse

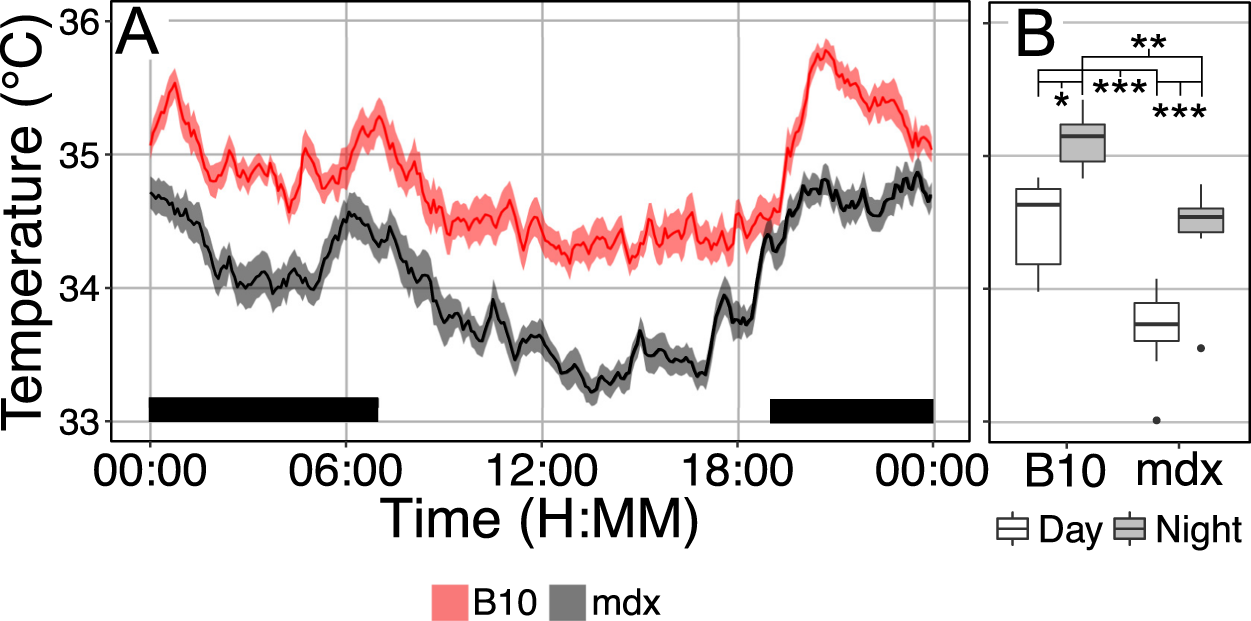

Core body temperature is significantly reduced in mdx mice. Telemetry derived core body temperature are shown. (A) Core body temperature median and interquartile range from C57BL/10 and mdx mice both during the day and during the night (black bar). (B) Boxplots of mean daily and nightly core body temperatures in dystrophic mice. Data are derived from 8 C57BL/10 (B10; 4.4 ± 0.4 months) and 8 mdx mice (6.0 ± 0.3 months). For each mouse data are averaged from three days of observations, data in (A) is mean ± SEM. *P < 0.05, **P < 0.005, ***P < 0.001.
