From: The lineage-specific, intrinsically disordered N-terminal extension of monothiol glutaredoxin 1 from trypanosomes contains a regulatory region

Figure 2

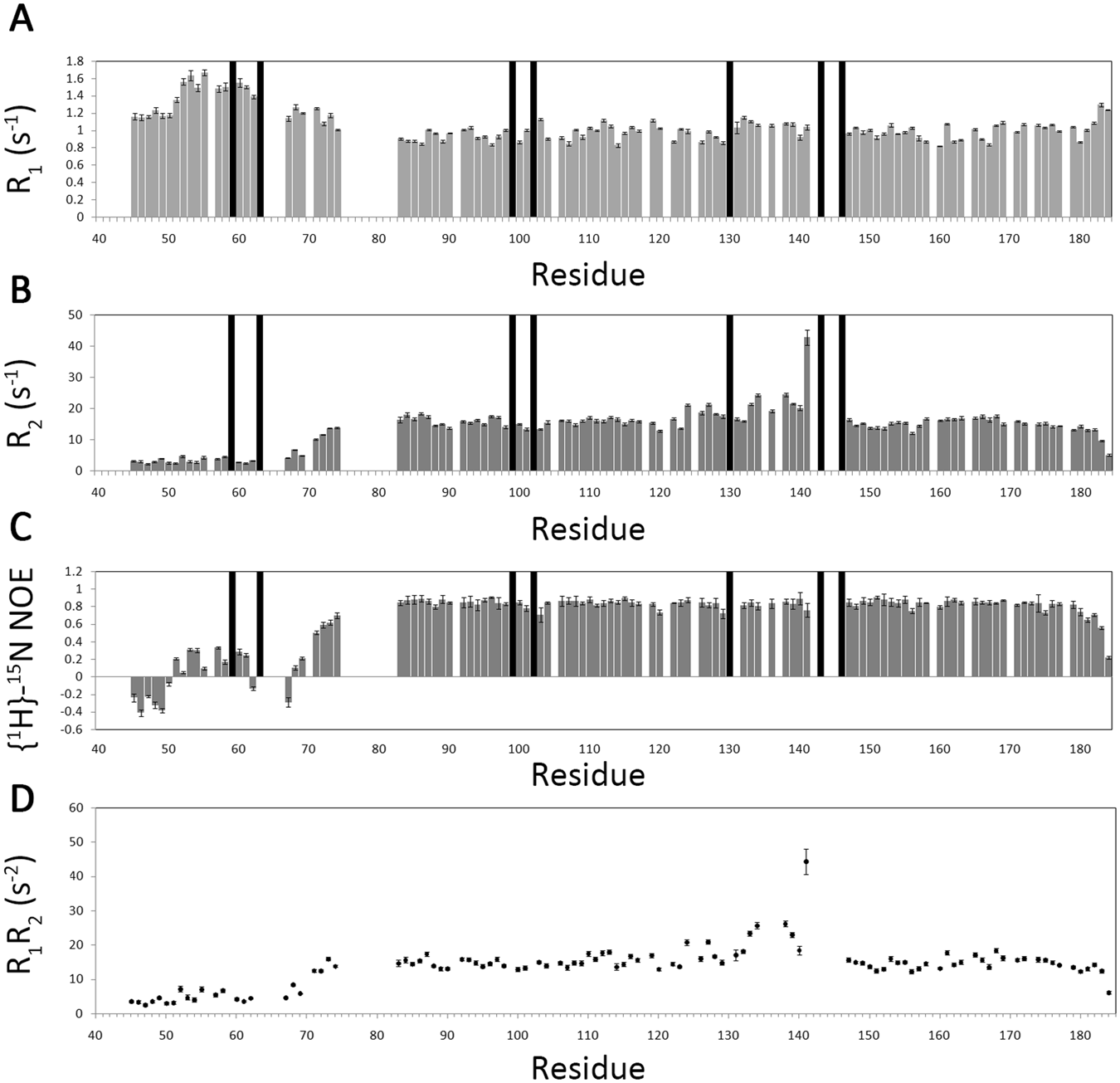

Backbone dynamics of FL 1CGrx1 probed by 15N-relaxation rates measured at a proton Larmor frequency of 600 MHz, at 298 K. Residues with severe peak overlap or poor signal-to-noise ration were excluded; proline residues are indicated with black bars. Longitudinal relaxation rate R1 (A), transverse relaxation rates R2 (B), steady-state 1H-15N heteronuclear NOE (C) and the product R1R2 (D) are shown as a function of the protein sequence.
