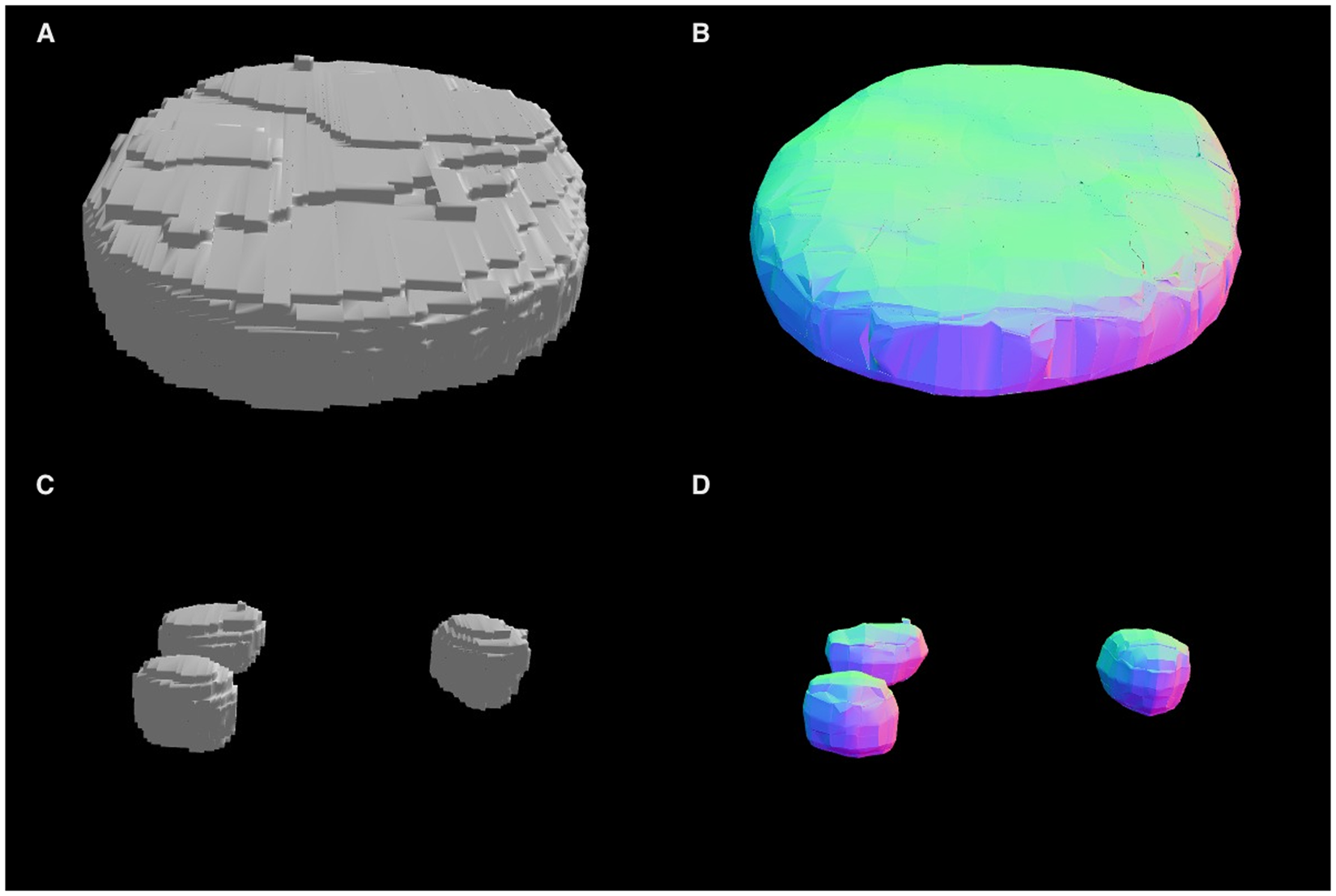

Robust smooth surface reconstruction. 3D visualization of: (A) a binary mask representation of a nucleus segmented from a Fibroblast cell image; (B) a mesh representation of a reconstructed smooth surface of a nucleus; (C) three binary masks for nucleoli segmented within this nucleus; and (D) three mesh representations of nucleolar surfaces, color-coded along the Z axis. Visualizations are produced with the SOCR Dynamic Visualization Toolkit web application65.
