Figure 4

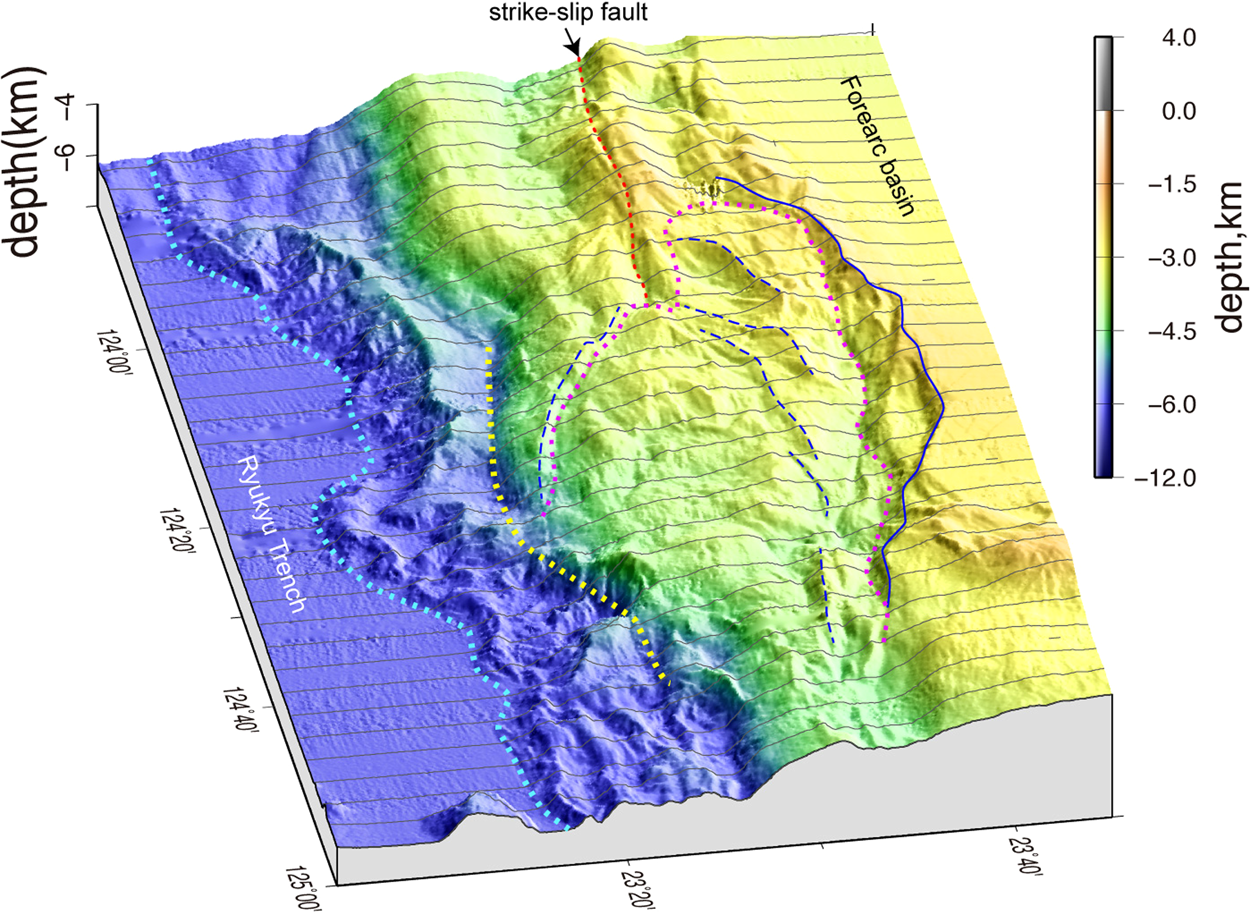

A bird’s-eye view of the shaded seafloor map. The seafloor bathymetric profiles at 2.5′ longitude intervals are indicated by grey lines to emphasize the depression geometry. The solid blue line indicates the upslope margin of the landward scarps, and the broken blue lines are the minor scarps in the depression, which are outlined by a pink dotted line. The yellow and sky blue dotted lines indicate the seaward bulge and deformation front south of the depression. The image was produced using GMT 4.546 and Adobe Illustrator CS6.
