Figure 3
From: Tracking Fish Abundance by Underwater Image Recognition

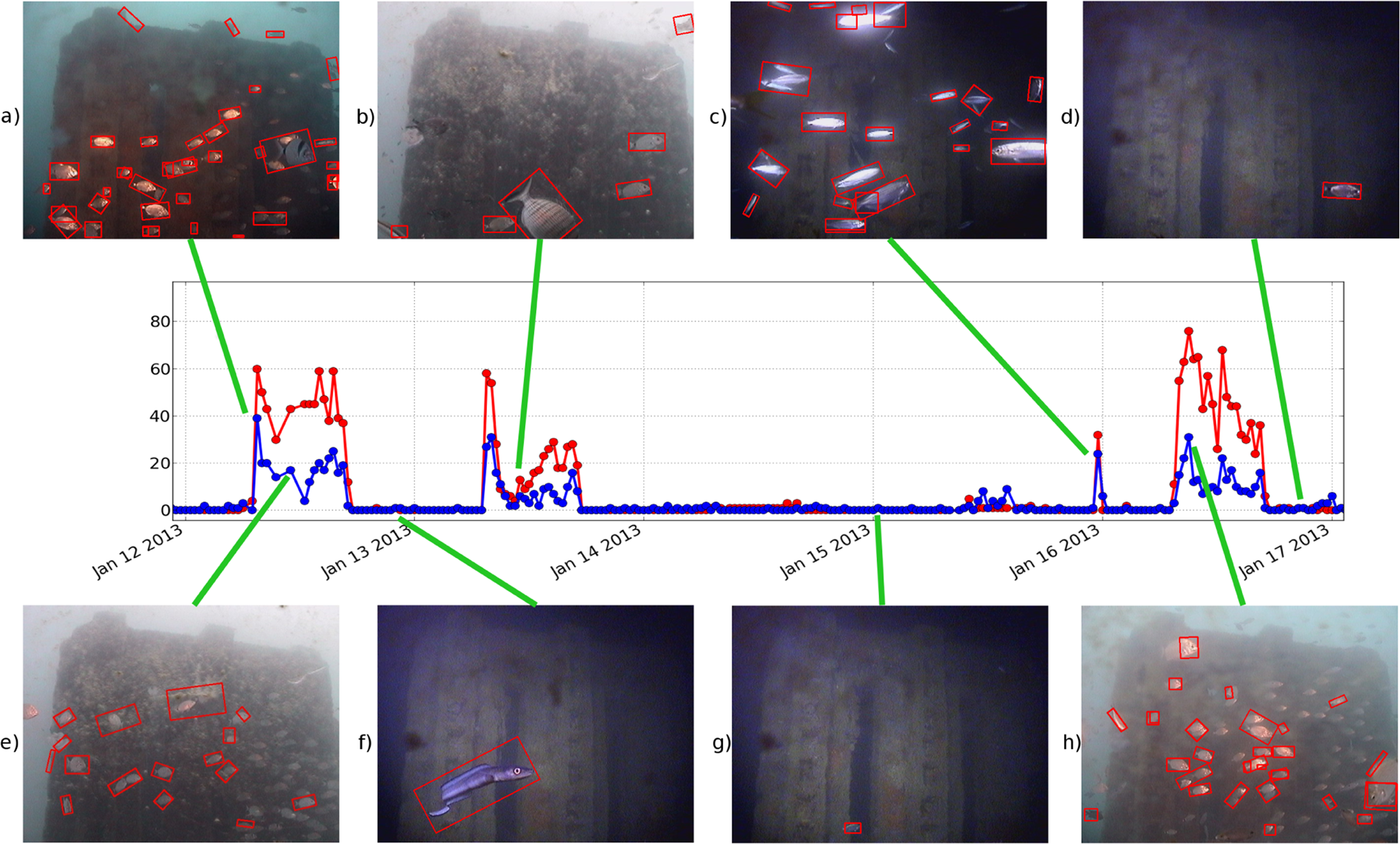

An example of a correlation between the time-series obtained through the visual inspection of the images (red line) and the time-series automatically extracted by the image classifier (blue line). The images show several examples of automated recognition (red boxes) during the presence of moderate turbidity and bio-fouling.
