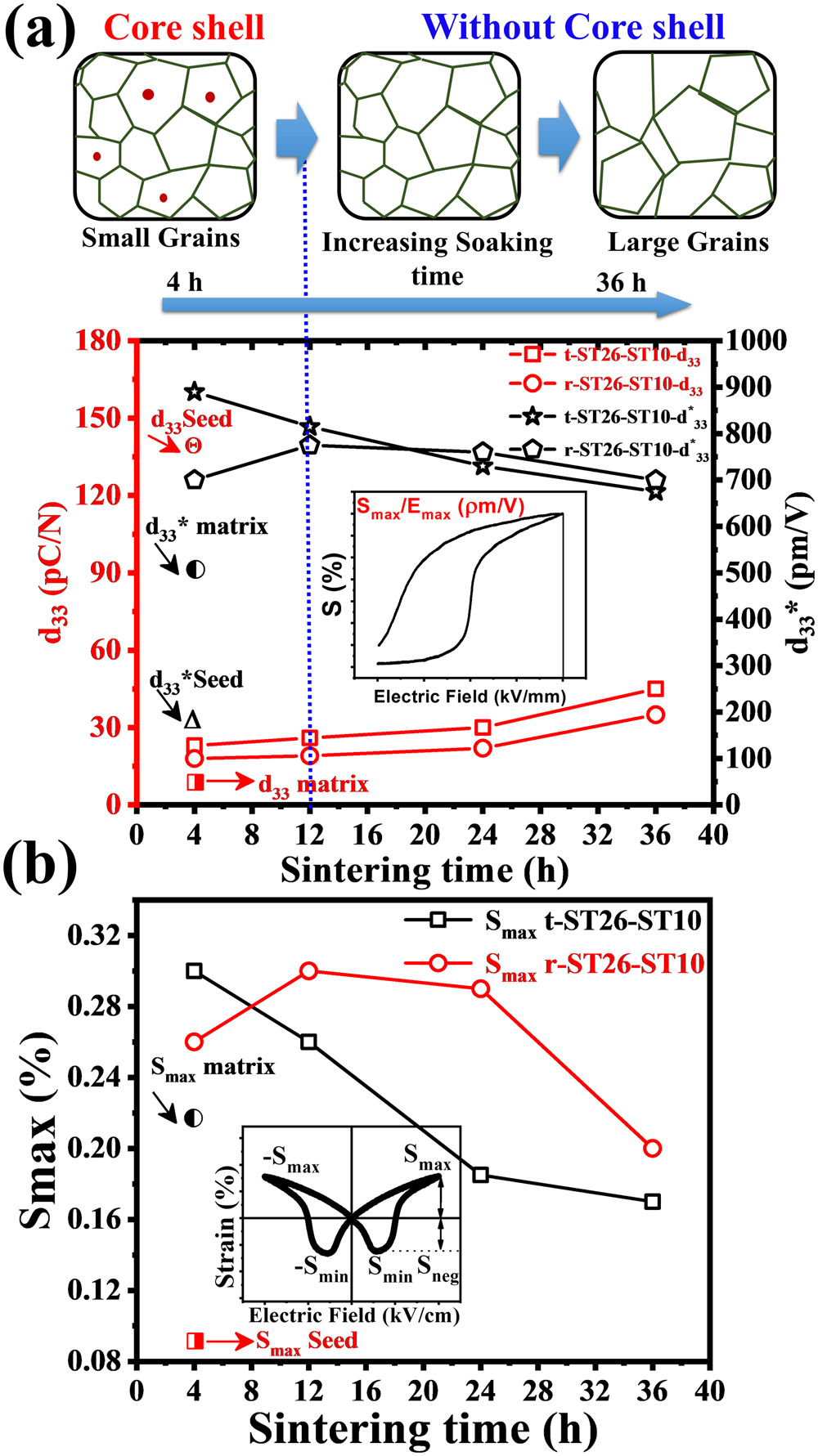

Figure 7

(a,b) Piezoelectric constant d₃₃, normalized strain d₃₃*, and maximum bipolar strain (S_max) as a function of different soaking times of the composites. Contribution of the core of a ferroelectric seed in a matrix is analyzed for the evolution of polarization, strain and phase transition.
