Figure 8
From: Origin of relationship between ferromagnetic response and damage in stretched systems

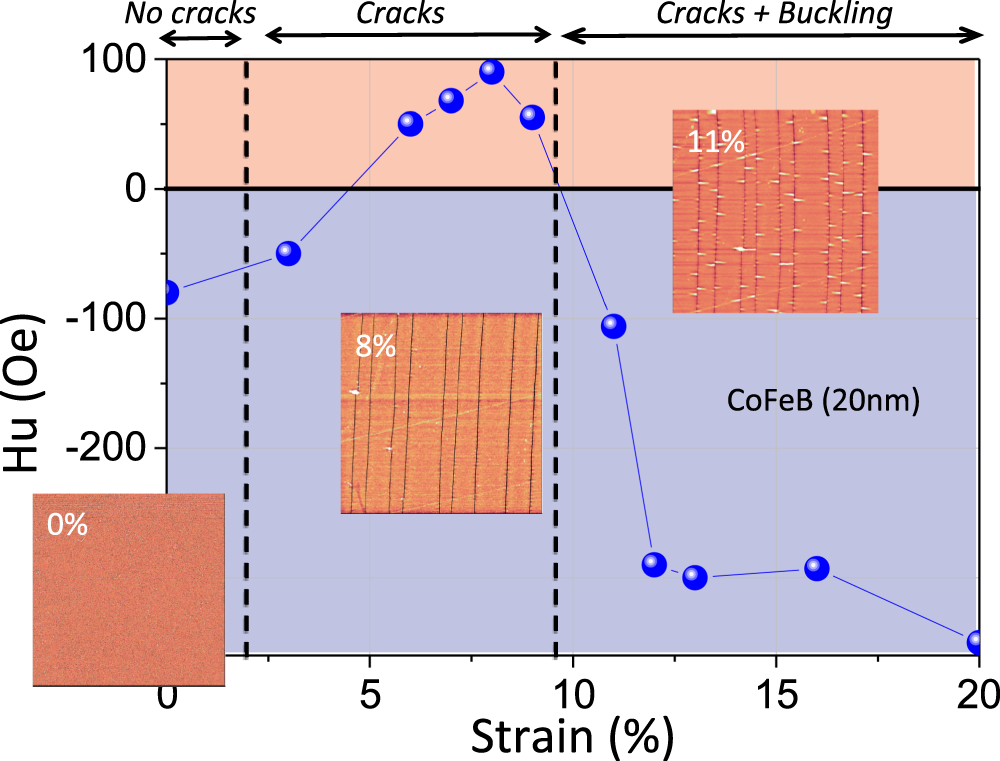

Variation of Hu as a function of the strain for 20 nm Co40Fe40B20 films. Hu is counted positively when it is aligned along the traction and negatively when it is perpendicular to it. The AFM images (20 × 20 mm2) presented are characteristic of the three regimes.
