Figure 9
From: Origin of relationship between ferromagnetic response and damage in stretched systems

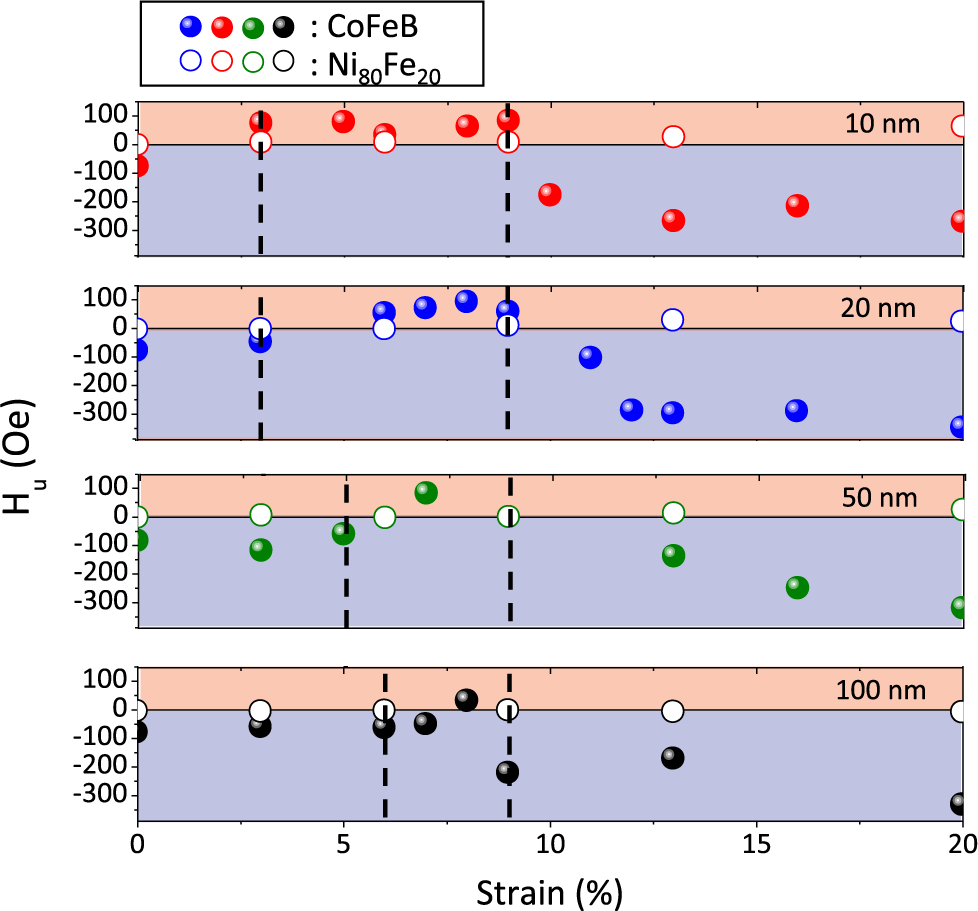

Hu variations as a function of the applied strains for CoFeB (filled symbols) and Ni80Fe20 (open symbols) films of different thicknesses: 10, 20, 50 and 100 nm. This field is counted positively when it is aligned along the traction and negatively when it is perpendicular to it. The Co40Fe40B20 films regimes (“absence of cracks”, “cracks” and “cracks + buckling”) are delimited by vertical black dotted lines.
