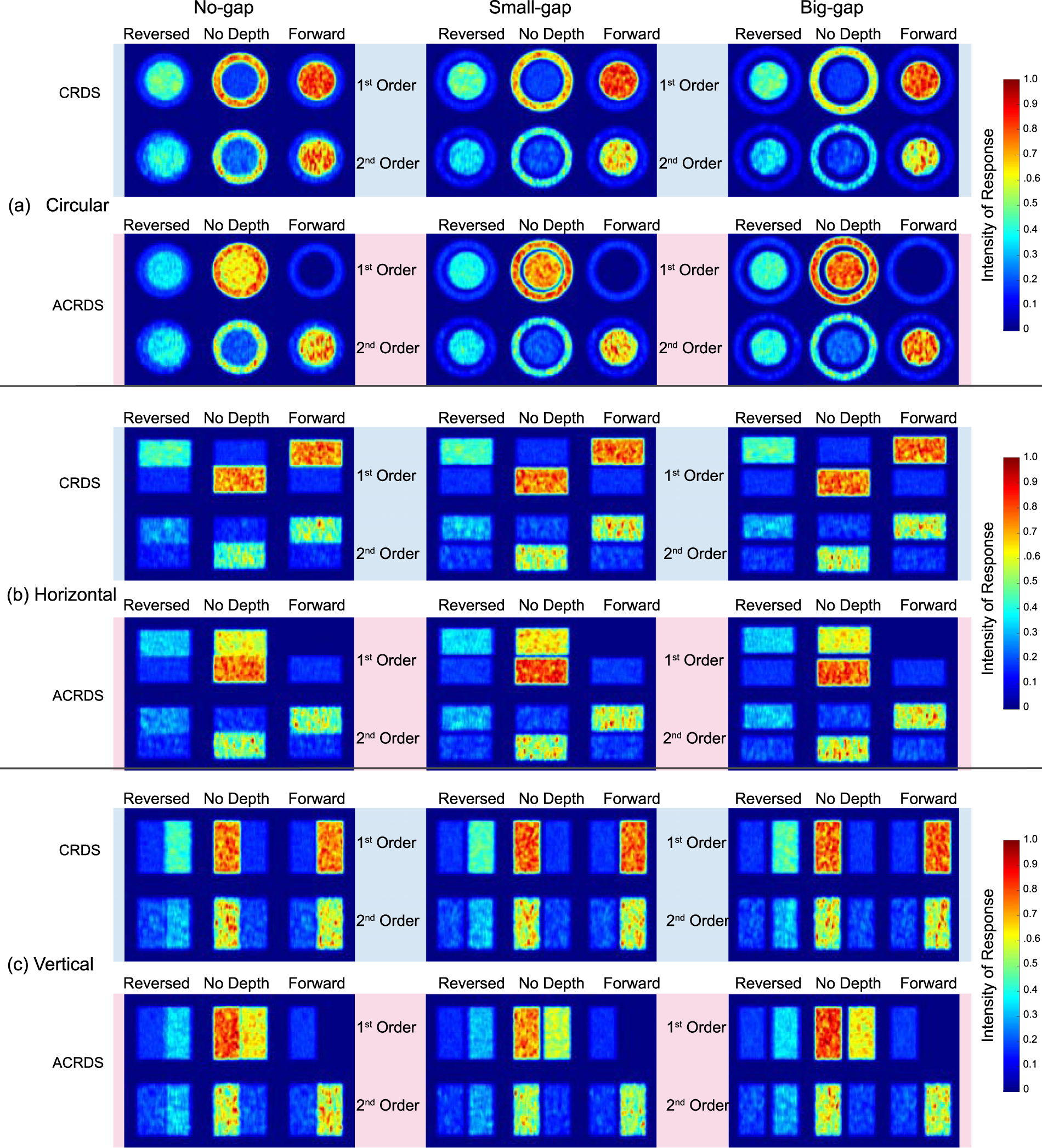

Figure 12
From: First- and second-order contributions to depth perception in anti-correlated random dot stereograms
Heatmaps for all nine conditions of the simulation for our specific stimuli. Circular stimuli are on the top (a), horizontal in the centre (b) and vertical at the bottom (c). Each shape has rows for CRDS (top) and ACRDS (bottom), and the gaps in columns, with no-gap (left), small-gap (middle) and big-gap (right). The reversed column shows results for filters tuned to an uncrossed disparity of 10 arc min, the no-depth column for filters tuned to zero disparity, and the forward column for filters tuned to a crossed disparity of 10 arc min. Responses were summed over the three spatial frequencies and 20 trials. Results were normalised separately for the first- and second-order channels by dividing by the maximum mean response. In all cases, the correlated zero-disparity reference produces a strong response in the zero-disparity-tuned filters. For the first-order channel, a stronger response to the target is evident in the forward (CRDS) or reverse (ACRDS) direction. In contrast, for the second-order channel a stronger response to the target is evident in the forward direction for both CRDS and ACRDS.
