Figure 1
From: Parkin-dependent regulation of the MCU complex component MICU1

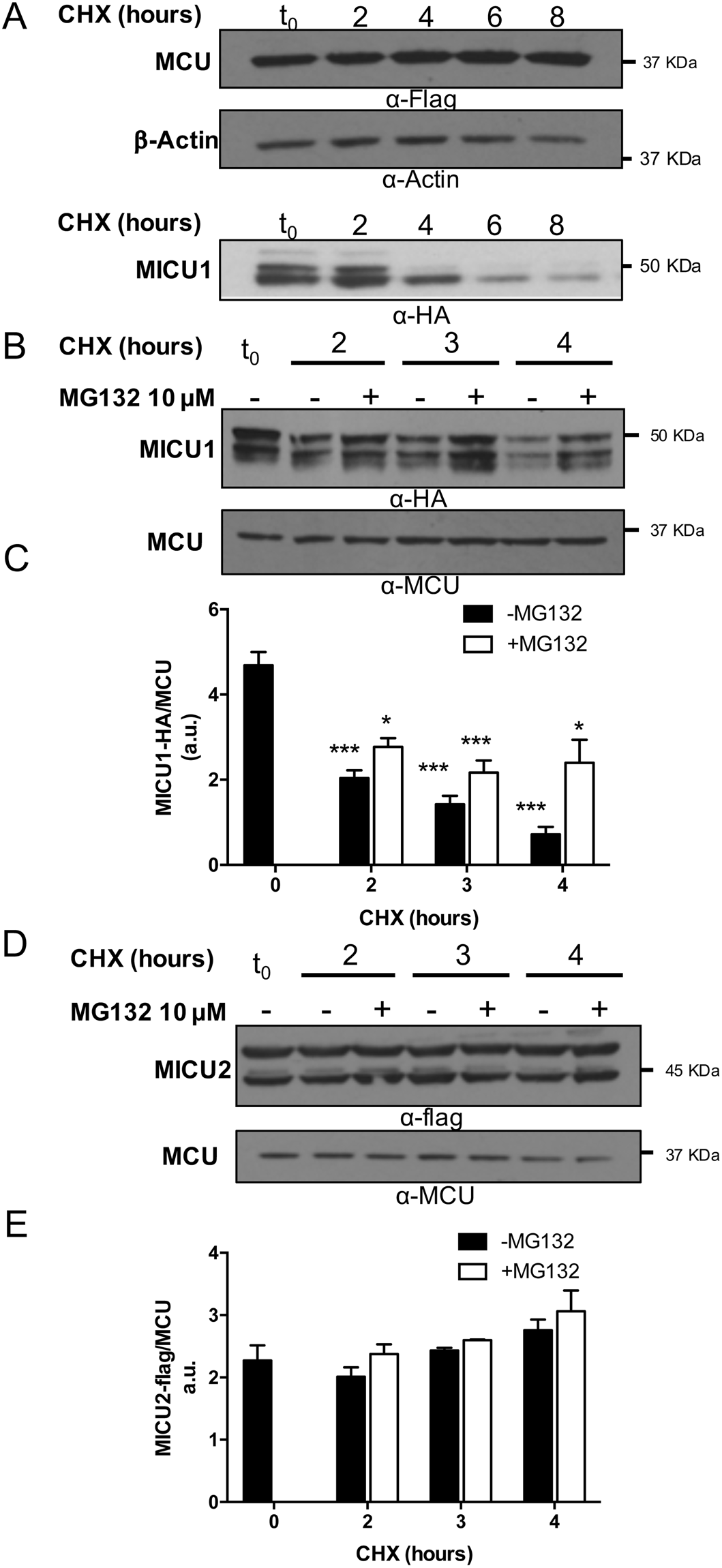

Half-life of MCU complex components. HeLa cells were transfected with MICU1-HA, MICU2-flag or MCU-flag. After 24 hours, cells were treated with 100 μg/ml Cycloheximide and either untreated or treated with 10 μM MG123. Cells were harvested after the indicated time points. Total proteins were extracted and subjected to western blot analysis with α-HA, α-flag or α-MCU antibodies. (A) Two independent representative western blots showing the half-life of overexpressed MCU-flag (upper panel) and MICU1-HA (lower panel). Actin is shown for comparison in the same blot for MCU. (B) Representative western blot and (C) densitometric analysis of MICU1 protein levels upon incubation or not with MG132, normalized to endogenous MCU protein. (D) Representative western blot and (E) densitometric analysis of MICU2 protein levels, normalized to endogenous MCU protein. Each bar represents mean +/− S.E.M of at least three independent experiments; *p < 0.05; ***p < 0.005. a.u.: arbitrary units.
