Figure 5

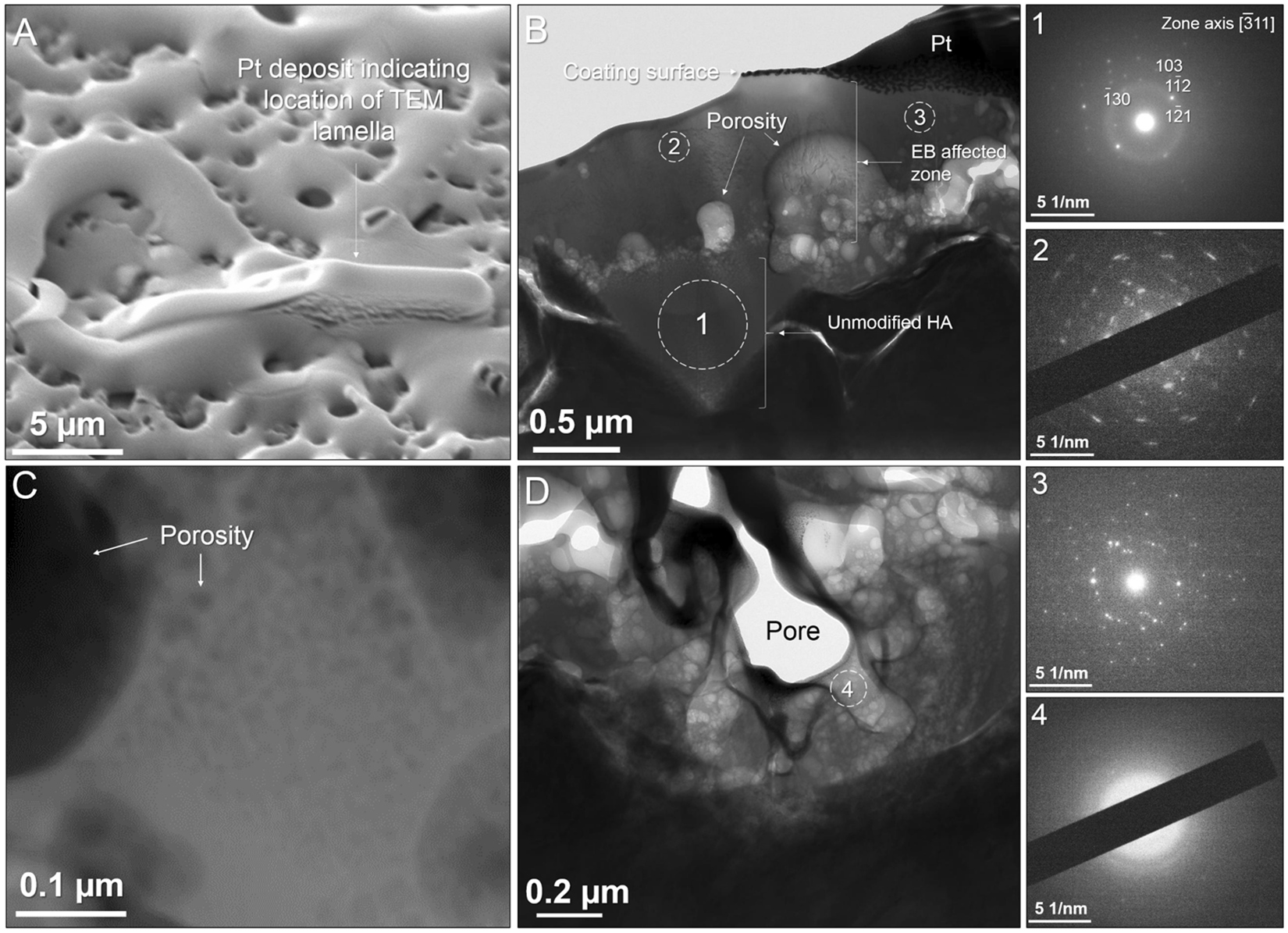

TEM of 25 kV, 1 shot electron irradiated coating. (A) Location of FIB lift out lamella extraction (B) Dark-field STEM image of high magnification porosity. (C,D) Bright-field STEM images of complete coating section and magnified porous region. SAED patterns were acquired at locations 1–4, corresponding to labels in C and D.
