Figure 2
From: Damping of selectively bonded 3D woven lattice materials

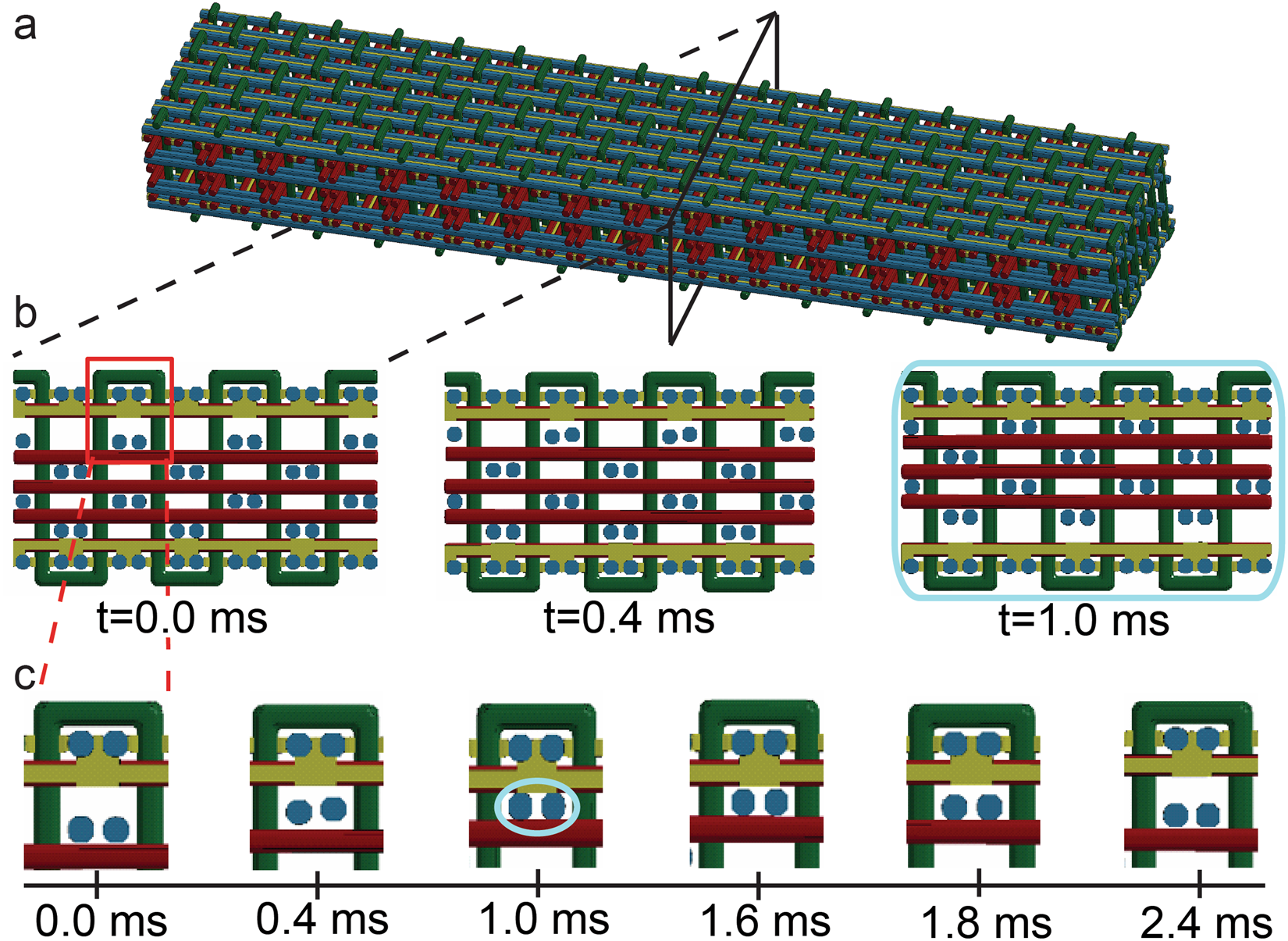

(a) The material consists of the brazed frame and the free, un-bonded lattice members subject to oscillatory loading. The simulated movement of the loose wires across the time period at the (b) whole cross section and (c) small zoom in the area on the top of the lattice. The impact between the free wires and the top brazed frame is shown for t = 1 ms as highlighted in light blue.
