Figure 2

From: First insight into microbiome profile of fungivorous thrips Hoplothrips carpathicus (Insecta: Thysanoptera) at different developmental stages: molecular evidence of Wolbachia endosymbiosis

Figure 2

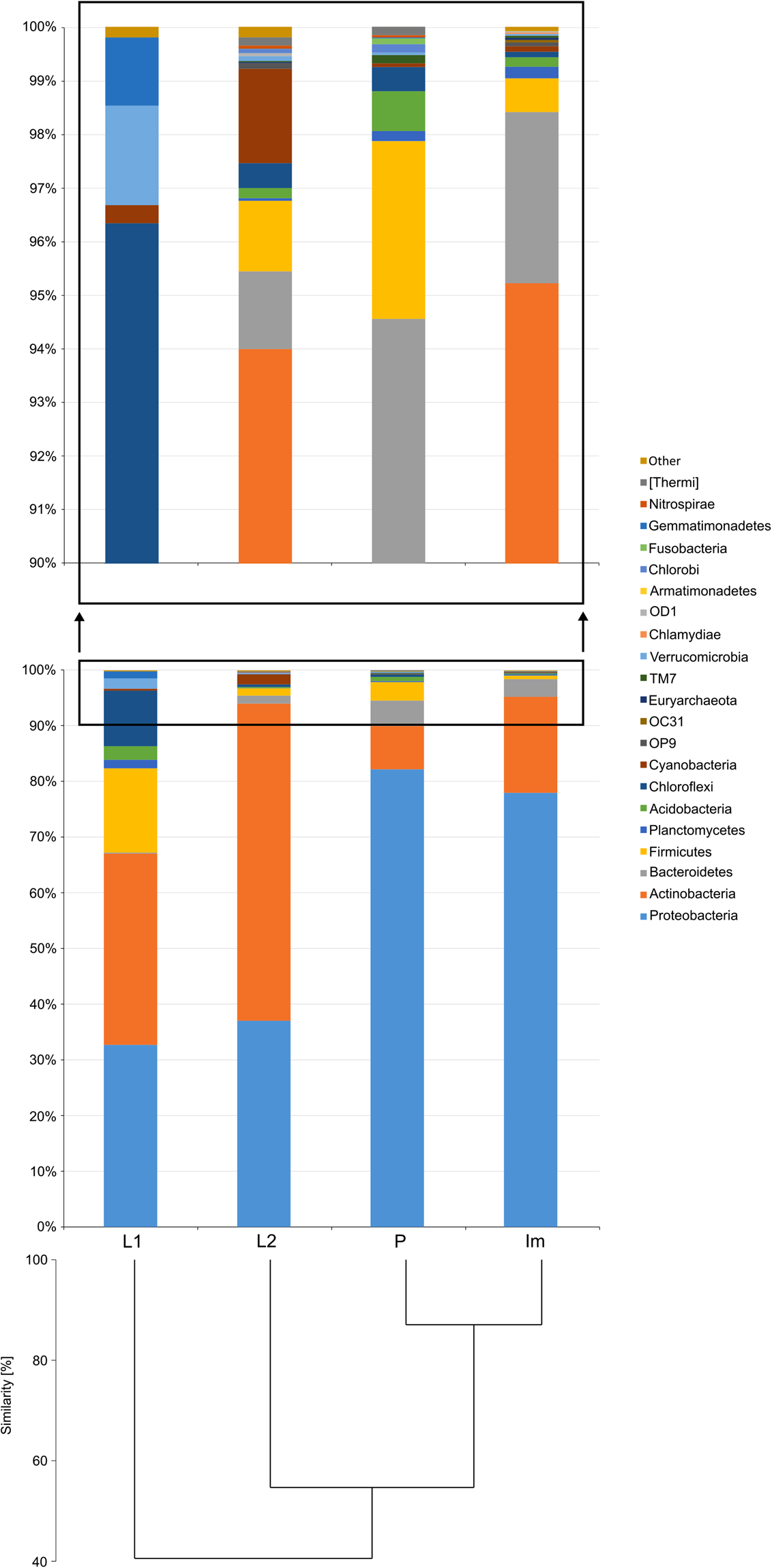

Abundance of bacterial 16S rRNA gene sequences at the phylum level with UPGMA clustering of H. carpathicus samples at different developmental stages according to community composition and structure. Abbreviations: L1 – first-stage larva, L2 – second-stage larva, P – pupa, Im – adult.
