From: Combined computational and experimental investigation of high temperature thermodynamics and structure of cubic ZrO2 and HfO2

Figure 3

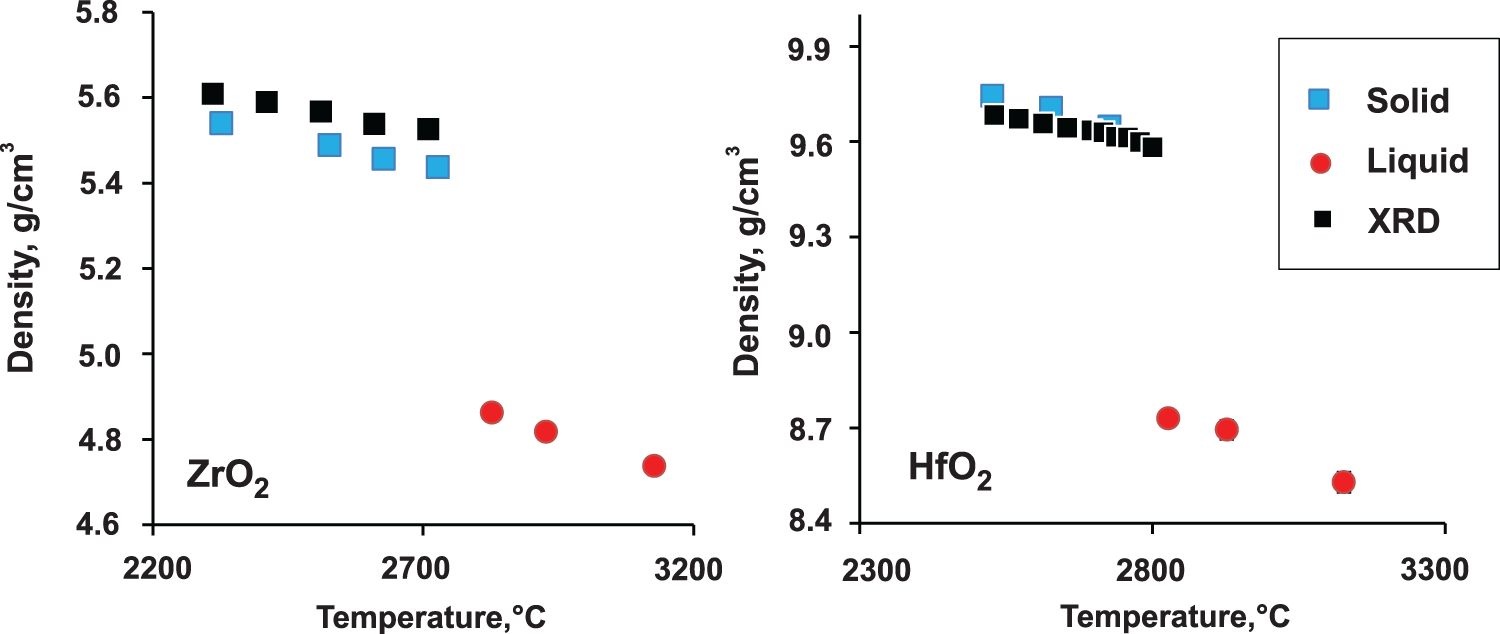

Density change on melting of cubic ZrO2 and HfO2 from ab initio MD computations with overlayed experimental results from high temperature X-ray diffraction (XRD). Uncertainties from computation and experiment are smaller than the symbol size. (The computational results are in Table 1, the results of Pawley refinement of XRD patterns are provided in Supplementary Information).
