From: Transcriptomics and co-expression networks reveal tissue-specific responses and regulatory hubs under mild and severe drought in papaya (Carica papaya L.)

Figure 4

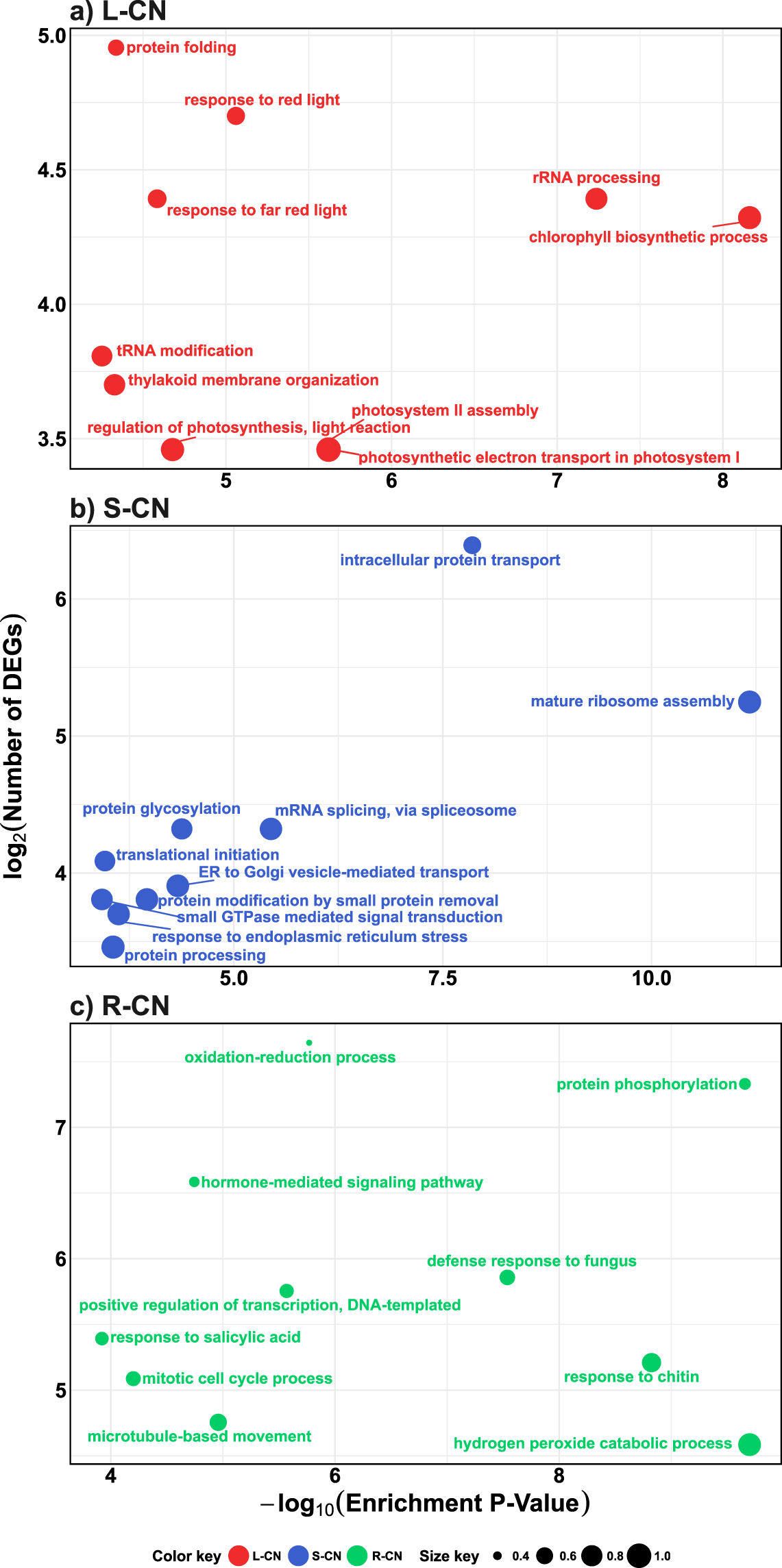

Functional GO enrichment analysis of the sets of up-regulated genes in leaf, sap, and roots under control condition identified in the reference-based transcriptomic analysis. Top 10 enriched GO terms (Biological Process category) identified in (a) L-CN, (b) S-CN, and (c) R-CN. Only the top 10 (based on enrichment P-Value) enriched GO terms are plotted in function of their enrichment P-value (x axis) and number of genes (y axis). Size key indicates the ratio of the number of genes in the test-set/total number of genes, for any given GO term. The complete lists of enriched GO terms are presented in Supplementary Table S6.
