From: Robustness of Voltage-induced Magnetocapacitance

Figure 4

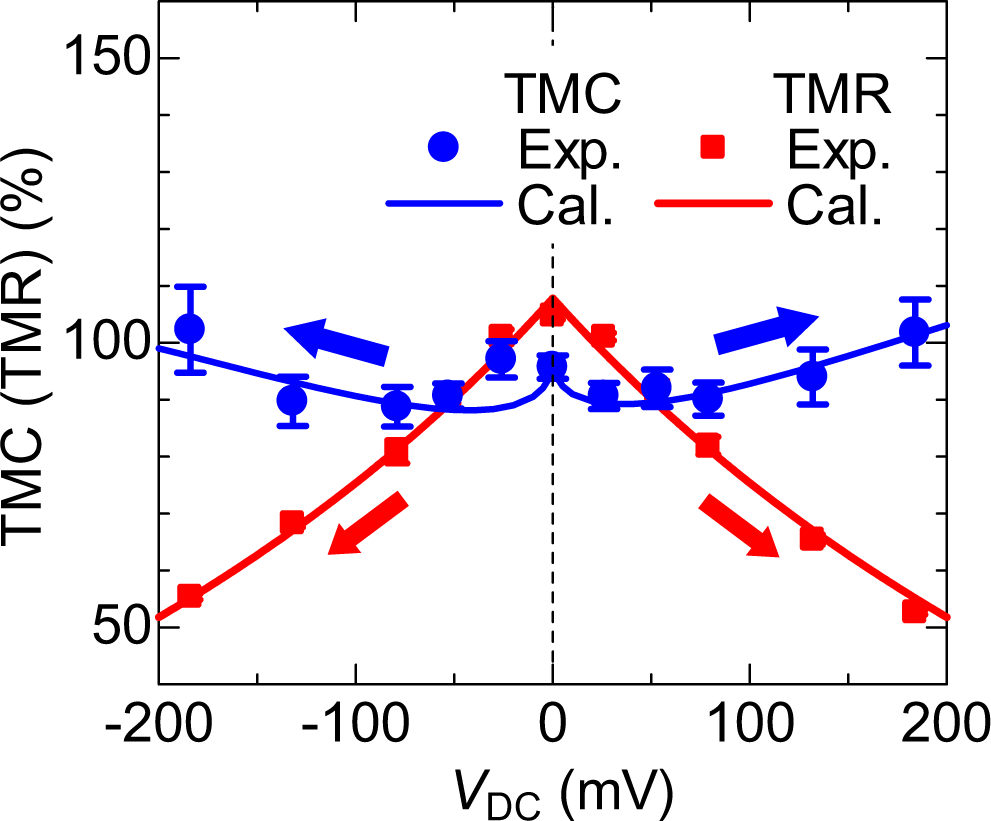

Bias dependence of TMC and TMR ratio. The solid lines represent the calculation results performed using Eqs (3)−(6) for TMC and Zhang formula for TMR. The parameters used in this calculation are described in the main text. The TMC and TMR provide excellent fits to experimental data in bipolar bias regions.
