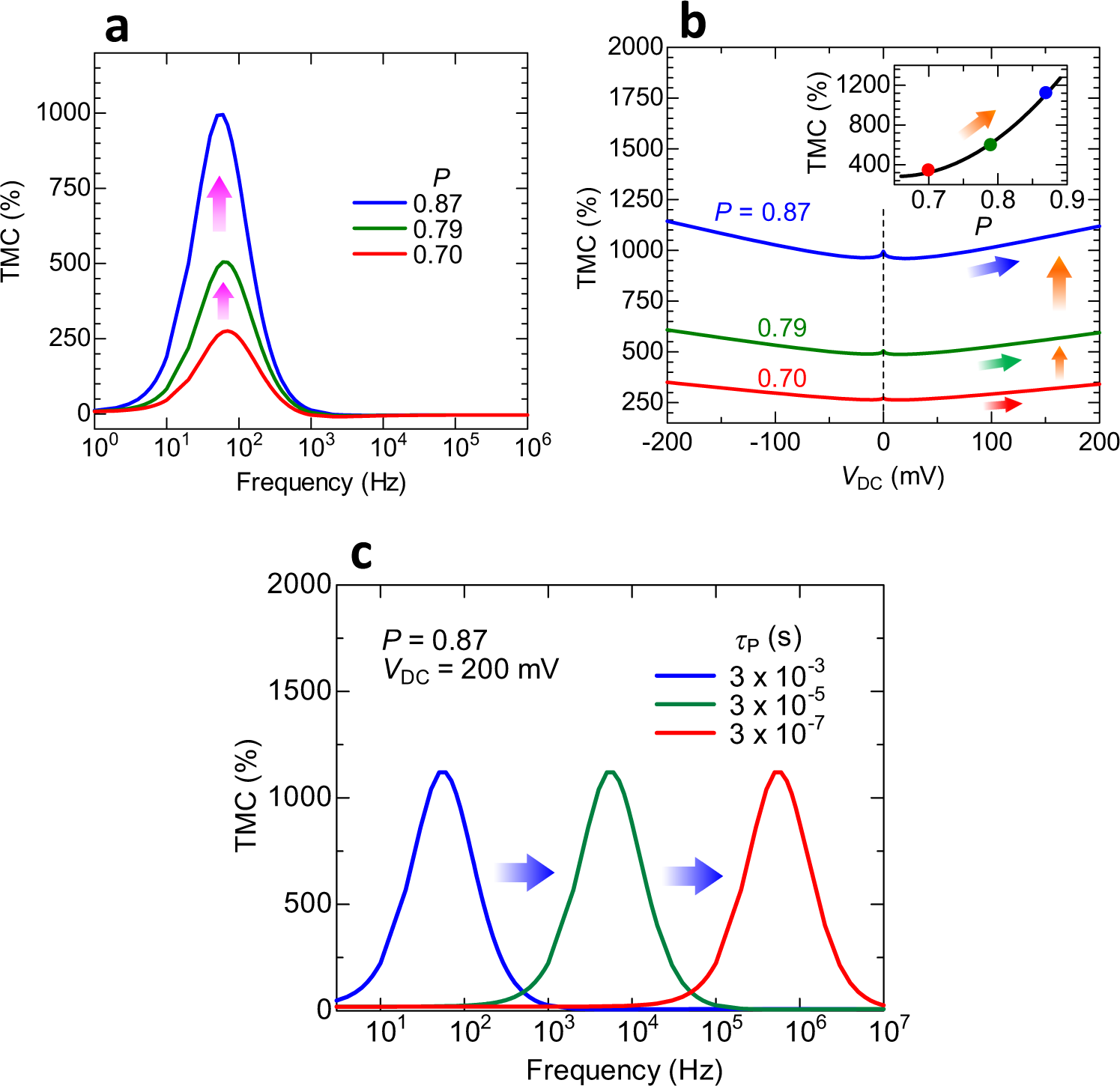

Figure 5

Calculated frequency dependence of extremely large voltage-induced TMC. (a) Calculated frequency dependence of the TMC at V_DC = 0 V in varying P. The TMC, showing the maximum value at f = 60 Hz, increases from 273% to 995% with increasing P from 0.70 to 0.87. (b) Calculated DC voltage dependence of the TMC. The calculation result predicts that the voltage-induced TMC could potentially reach 1100% in MTJs with a P of 0.87, which is within the realm of high-performance MTJs (See ref.¹²). (c) Calculated frequency dependence of the voltage-induced TMC with varying τ_P. The peak position of the TMC is shifted to a high frequency region for a short τ_P.
