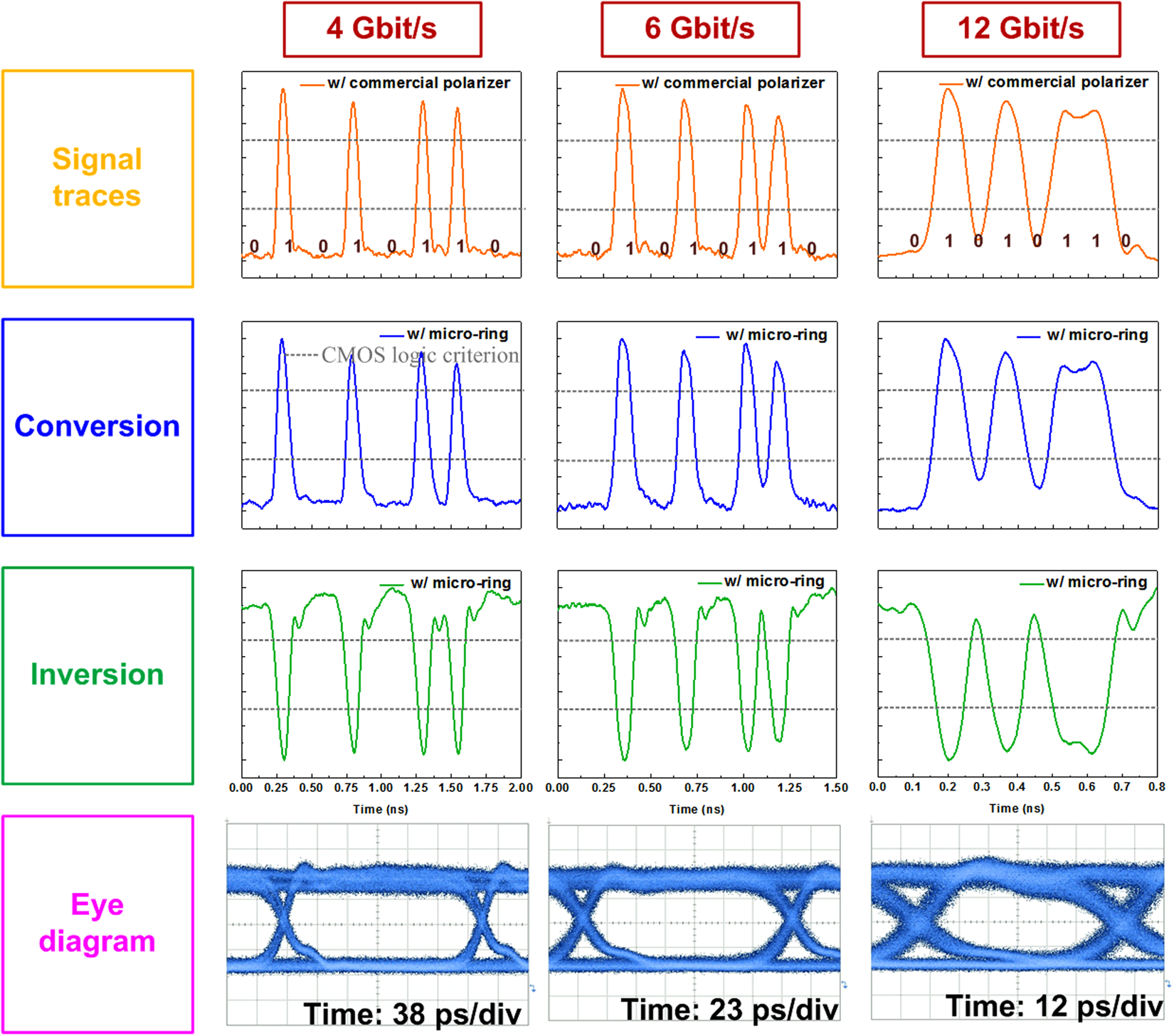

Figure 4
From: Realizing multi-functional all-optical data processing on nanoscale SiC waveguides
The TE/TM polarized decoding performance of the add-drop micro-ring. A TE/TM polarized data with a specific data stream of “01010110” at different data rates (4, 6 and 12 Gbit/s) is decoded by a commercial 25-dB in-line polarizer (first column) and the add-drop micro-ring (2nd and 3rd column). The decoded converted and inverted signal by the add-drop micro-ring are shown in the 2nd and 3rd column of the figure. The diagrams in the last column of the figure show the stacked traces of 4, 6 and 12-Gbit/s TE/TM polarized data stream with a pattern length of 27-1 decoded by the add-drop micro-ring.
