Figure 7
From: Realizing multi-functional all-optical data processing on nanoscale SiC waveguides

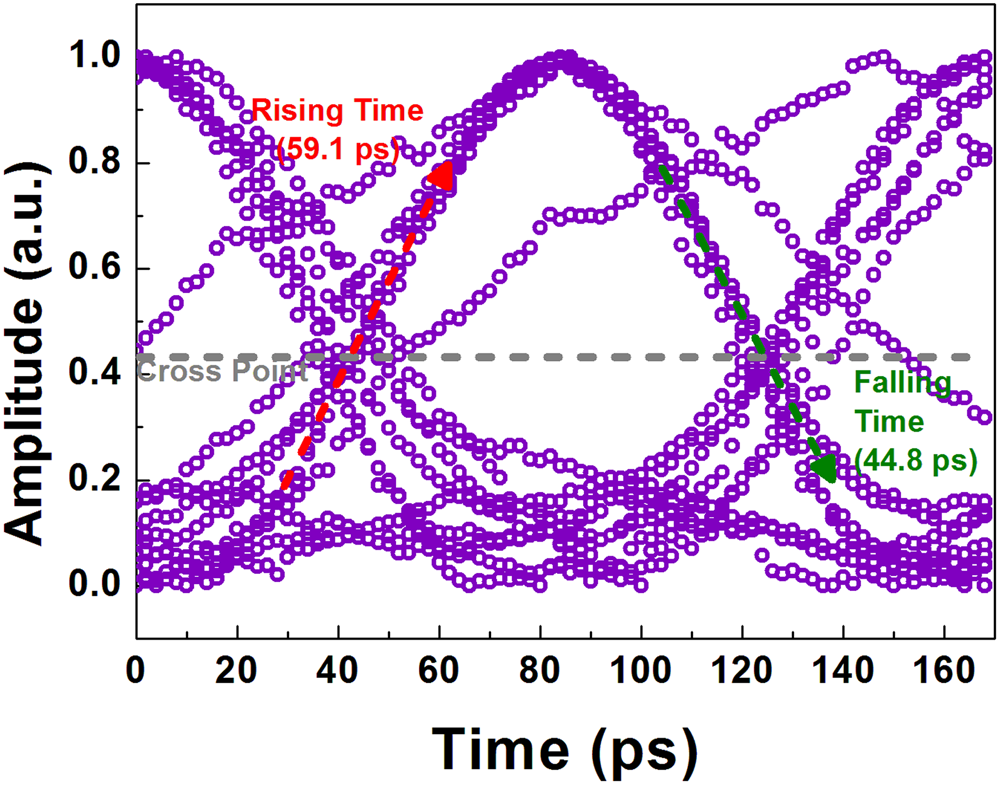

The eye diagram of 12-Gbit/s converted PRZ-OOK with C-C bond enriched SiC based add-drop micro-ring. The diagram shows the stacked traces of 12-Gbit/s PRZ-OOK converted by C-C bond enriched SiC add-drop micro-ring based Kerr switch.
