Figure 4
From: Thermal efficiency of a thermocell made of Prussian blue analogues

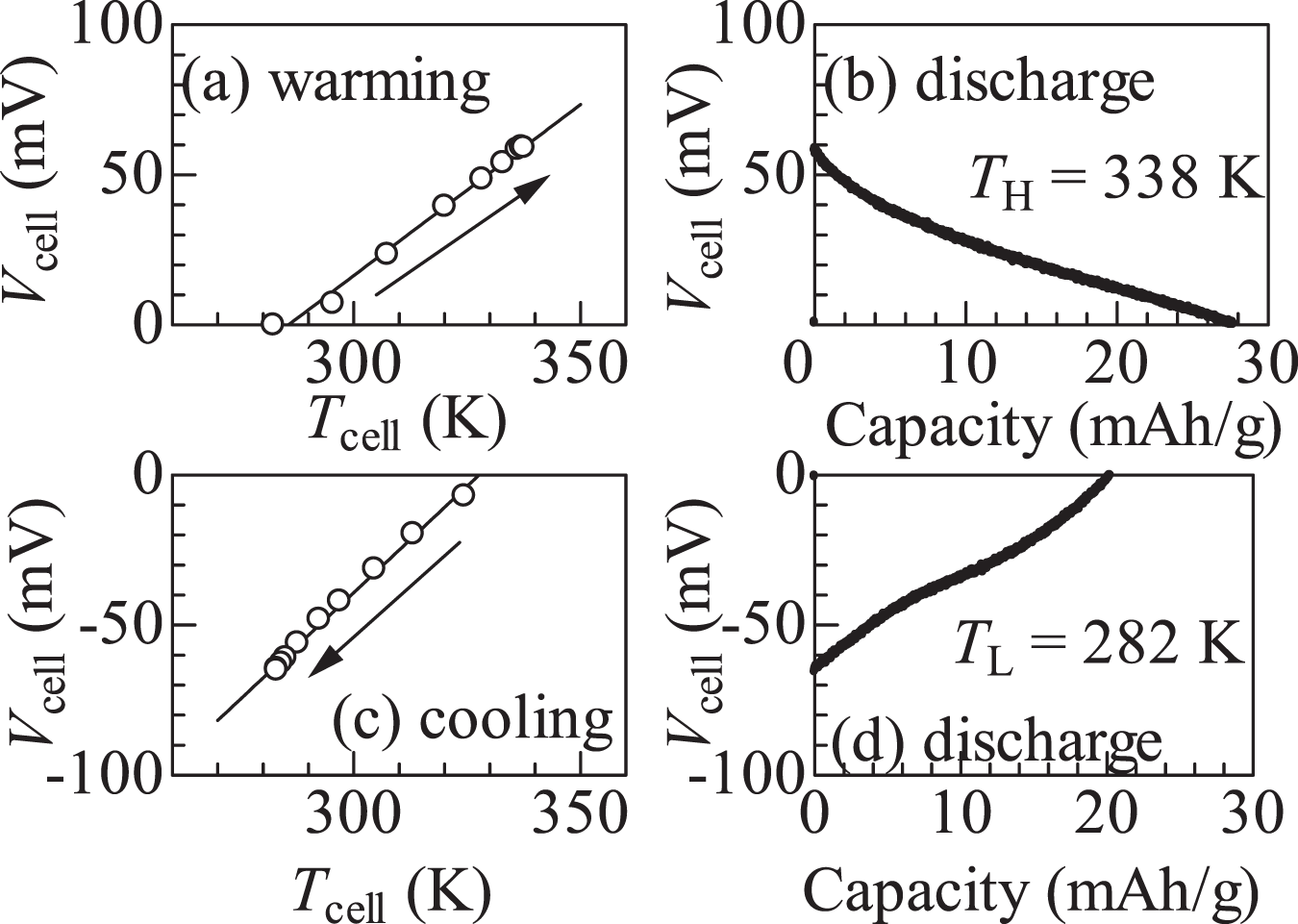

Thermal cycle (ΔT = 56 K) of the NCF83/NCF90 thermocell: (a) Warming process from TL (=282 K) to TH (=338 K) in the open circuit condition, (b) discharge process at TH at constant current (I = 0.6 μA), (c) cooling process from TH to TL in the open circuit condition, and (d) discharge process at TL at constant current (I = −0.6 μA).
