Figure 4 | Scientific Reports

Figure 4

From: Exosomes from normal and diabetic human corneolimbal keratocytes differentially regulate migration, proliferation and marker expression of limbal epithelial cells

Figure 4The alternative text for this image may have been generated using AI.

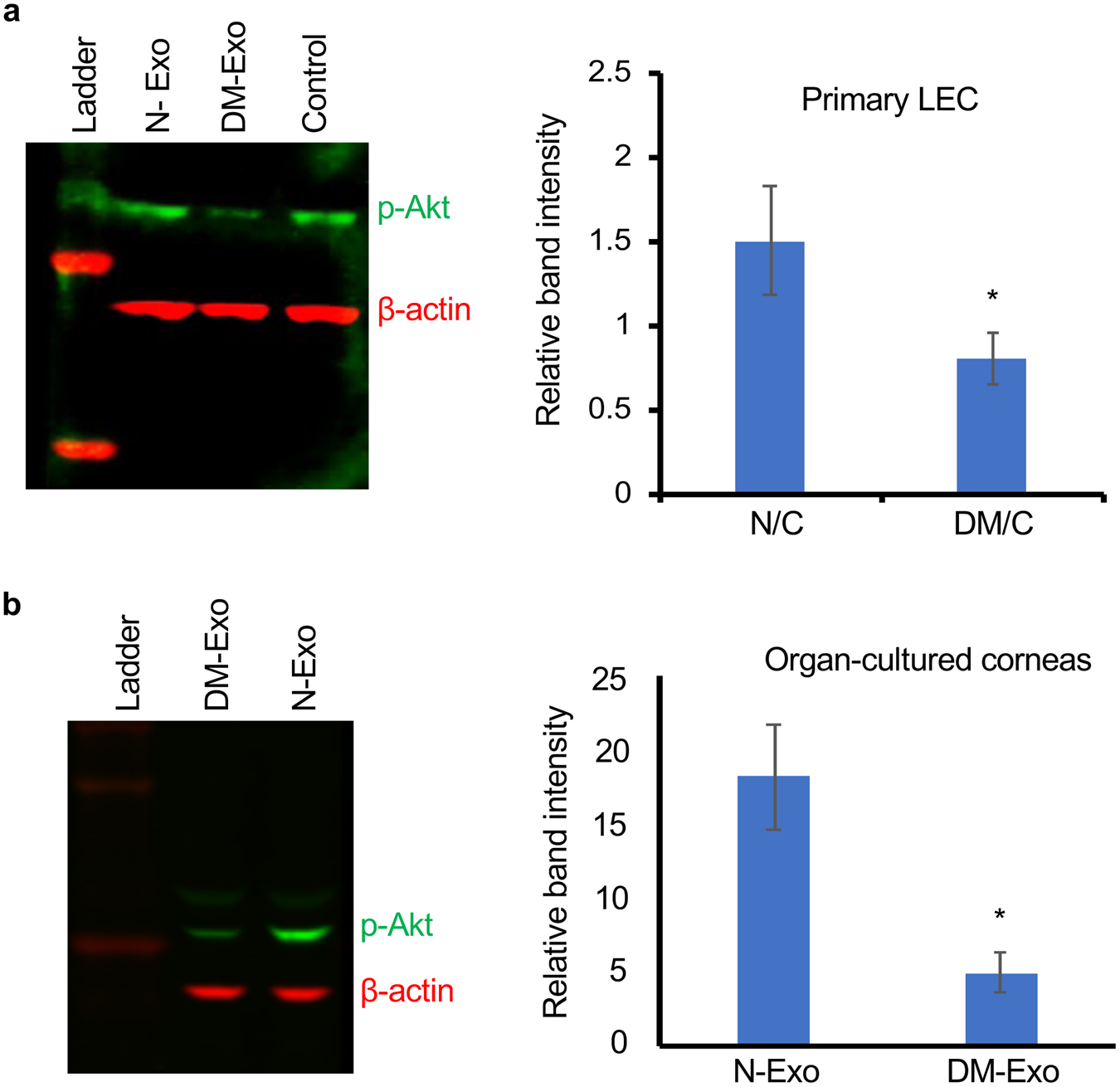

Western blot analysis of p-Akt expression in wounded LEC and organ-cultured corneas treated with normal or DM LSC-derived Exos. (a) Total extracted protein from wounded primary LEC treated with N/DM Exos and untreated cells (control) was separated on gradient SDS-PAGE gels, transferred to nitrocellulose and probed with antibodies to p-Akt. Normal-Exo treatment increases protein levels of p-Akt vs. control (PBS/untreated) and DM-Exo treated cells. (b) Western analysis showed increases p-Akt expression in wounded organ-cultured corneas treated with N-Exos compared to the fellow corneas treated with DM-Exos. Antibody to β-actin was used as equal loading control and for semi-quantitation. All experiments were performed in triplicate. *p < 0.05 by paired two-tailed t test.
