Figure 1 | Scientific Reports

Figure 1

From: Circadian monitoring as an aging predictor

Figure 1

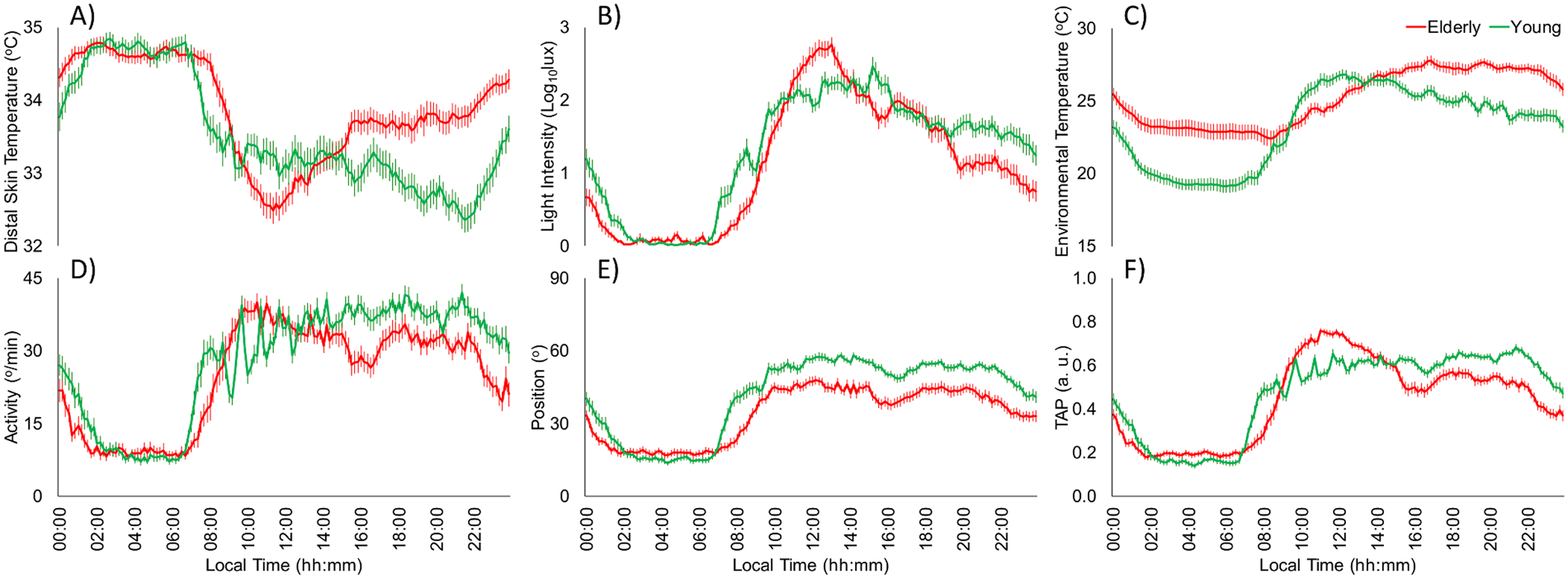

Mean-waveforms for young (green line, n: 44) and aged participants (red line, n: 44) for: (A) distal skin temperature, (B) light exposure, (C) environmental temperature, (D) activity, (E) body position and (F) the integrated variable TAP. All variables are expressed as the mean ± SEM.
