Figure 4
From: Multiple intrasyntenic rearrangements and rapid speciation in voles

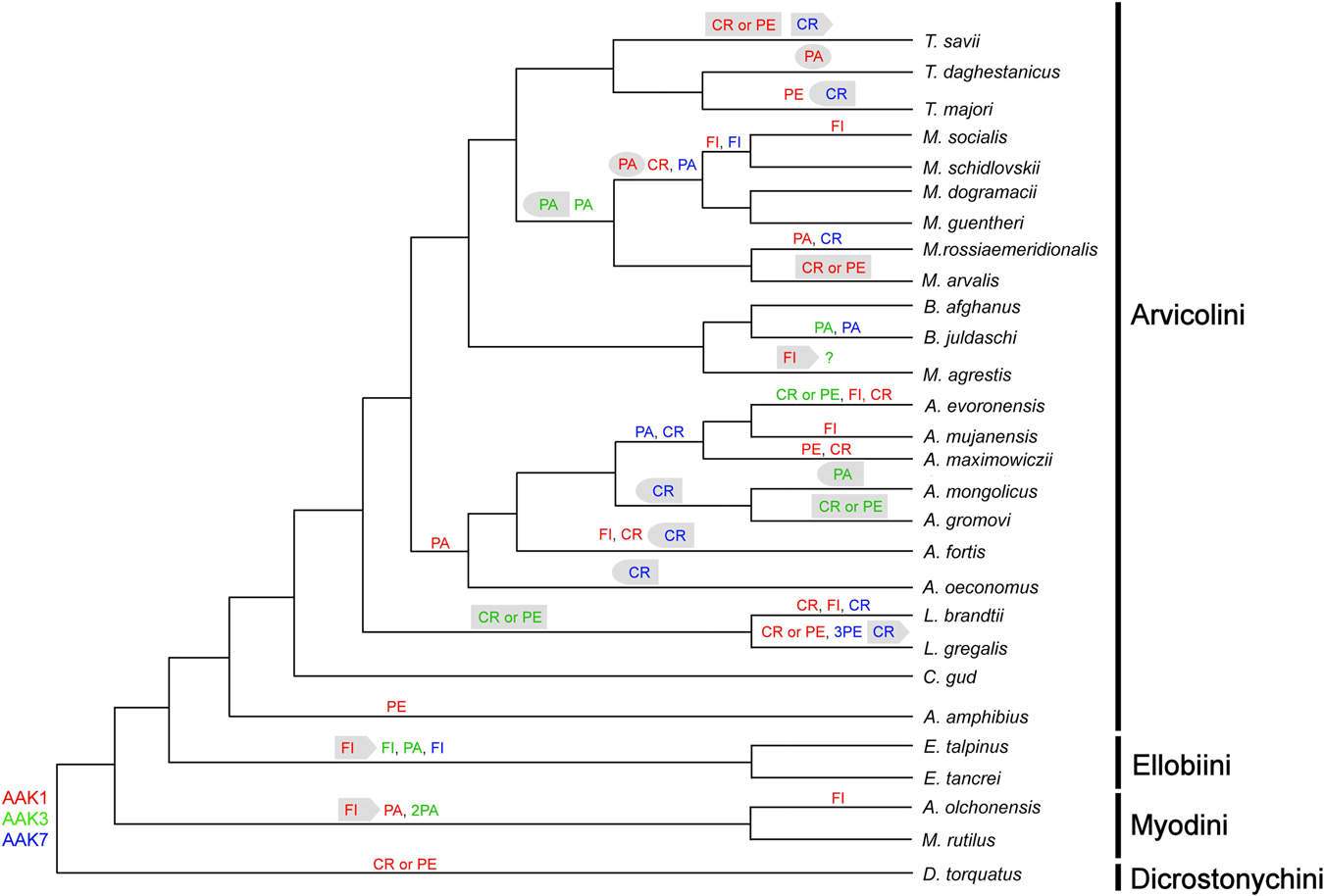

The phylogenetic tree of arvicoline species is based on2,4,5. Specific rearrangements are shown above each branch and correspond to AAK1 (red), AAK3 (green), AAK7 (blue). Homoplasies found in different branches were placed in the same-shaped grey figures. The tree only shows the pattern of branching, but not the relative scale of it. The length of the branches is not informative.
