Figure 10
From: Efficient and Sensitive Electrically Small Rectenna for Ultra-Low Power RF Energy Harvesting

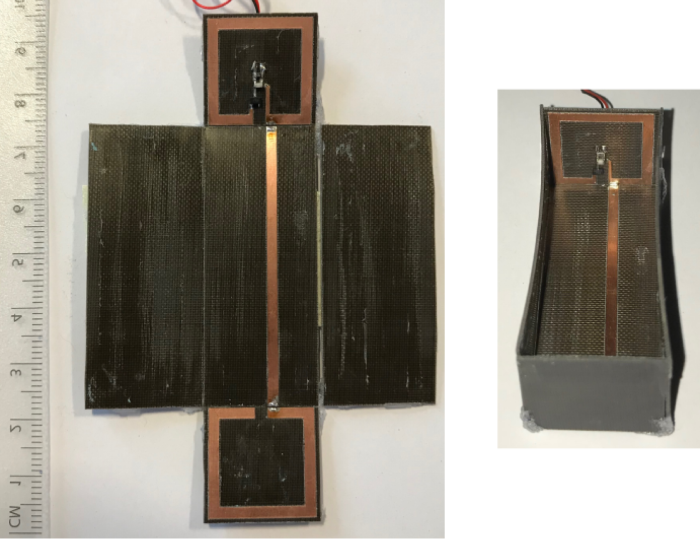

Fabricated and measured rectenna before (left) and after (right) is assembled in 3D shape: is also depicted the co-planar rectifier (upper SSRR).
