Figure 5
From: Reduced graphene oxide triggered epithelial-mesenchymal transition in A549 cells

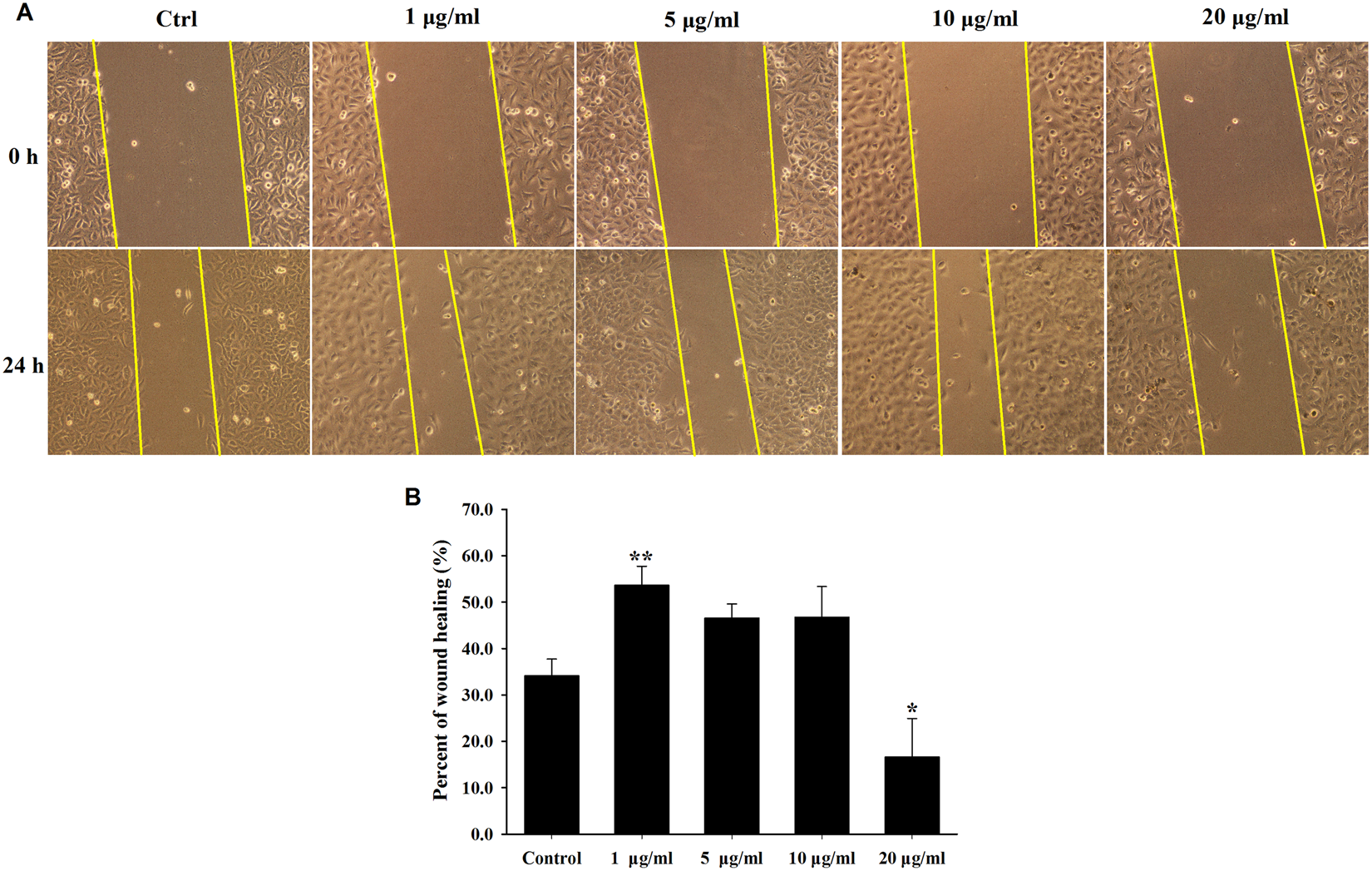

Effect of rGO on A549 migration into an artificially induced wound. (A) Representative images from the wound healing scratch assay at 0 and 24 h timepoints in the presence of rGO (0, 1, 5, 10 and 20 μg/ml). (B) The migratory level of A549 cells were quantified by the wound area closure, *indicates significant difference from control with P < 0.05, and values are the mean ± SD of three independent experiments.
