Figure 4
From: Structural Analysis of an Epitope Candidate of Triosephosphate Isomerase in Opisthorchis viverrini

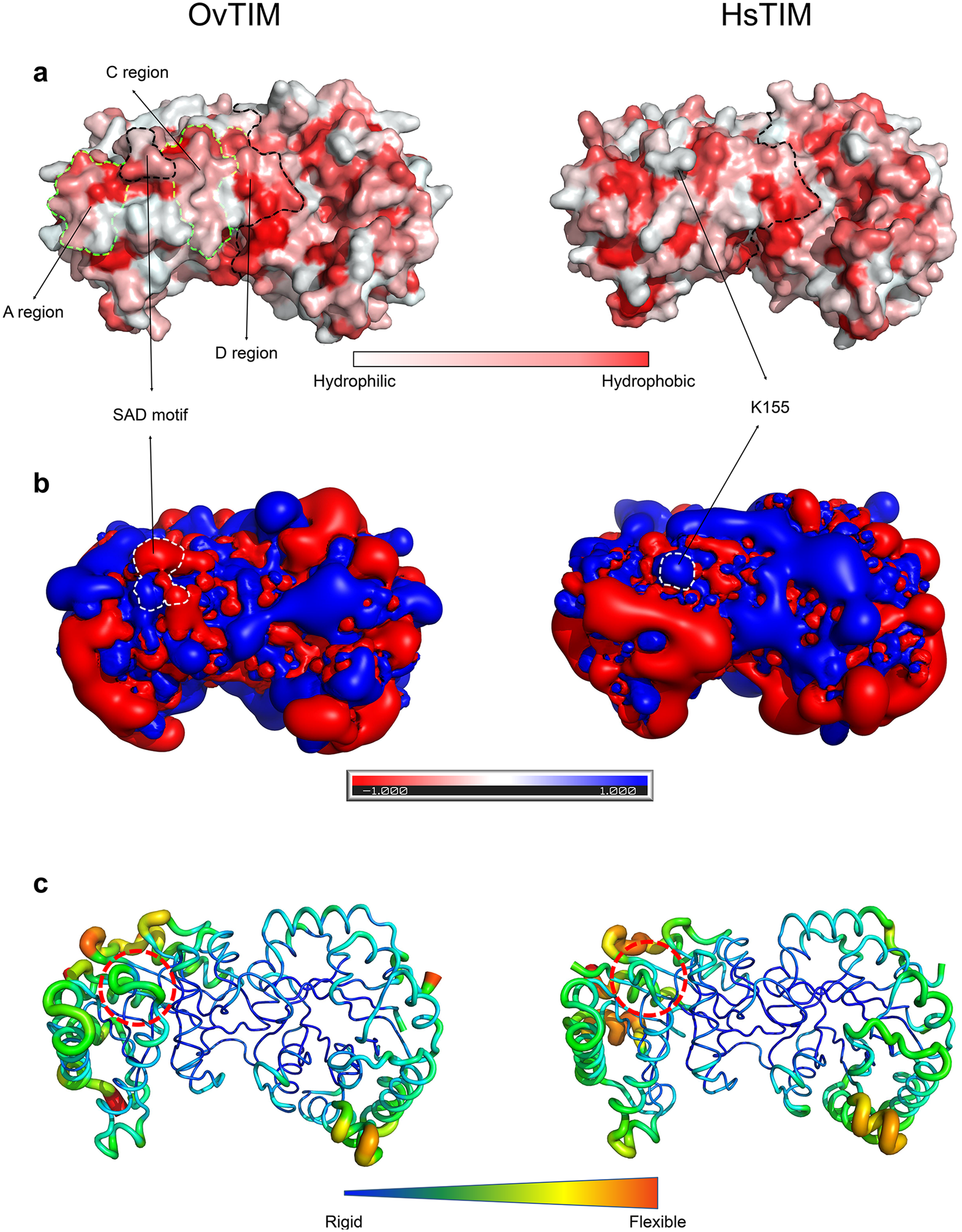

Comparison of surface characteristics between OvTIM and HsTIM. (a) Hydrophobicity of the 4 hydrophobic regions comprising the long hydrophobic patch in OvTIM is represented as dotted lines. (b) Electrostatic field, the SAD motif in OvTIM and K155 in HsTIM are designated as white dotted lines. (c) Temperature factor, the SAD motif in OvTIM and K155 in HsTIM are designated as red dotted circles.
