Figure 6
From: A Prognostic 5-lncRNA Expression Signature for Head and Neck Squamous Cell Carcinoma

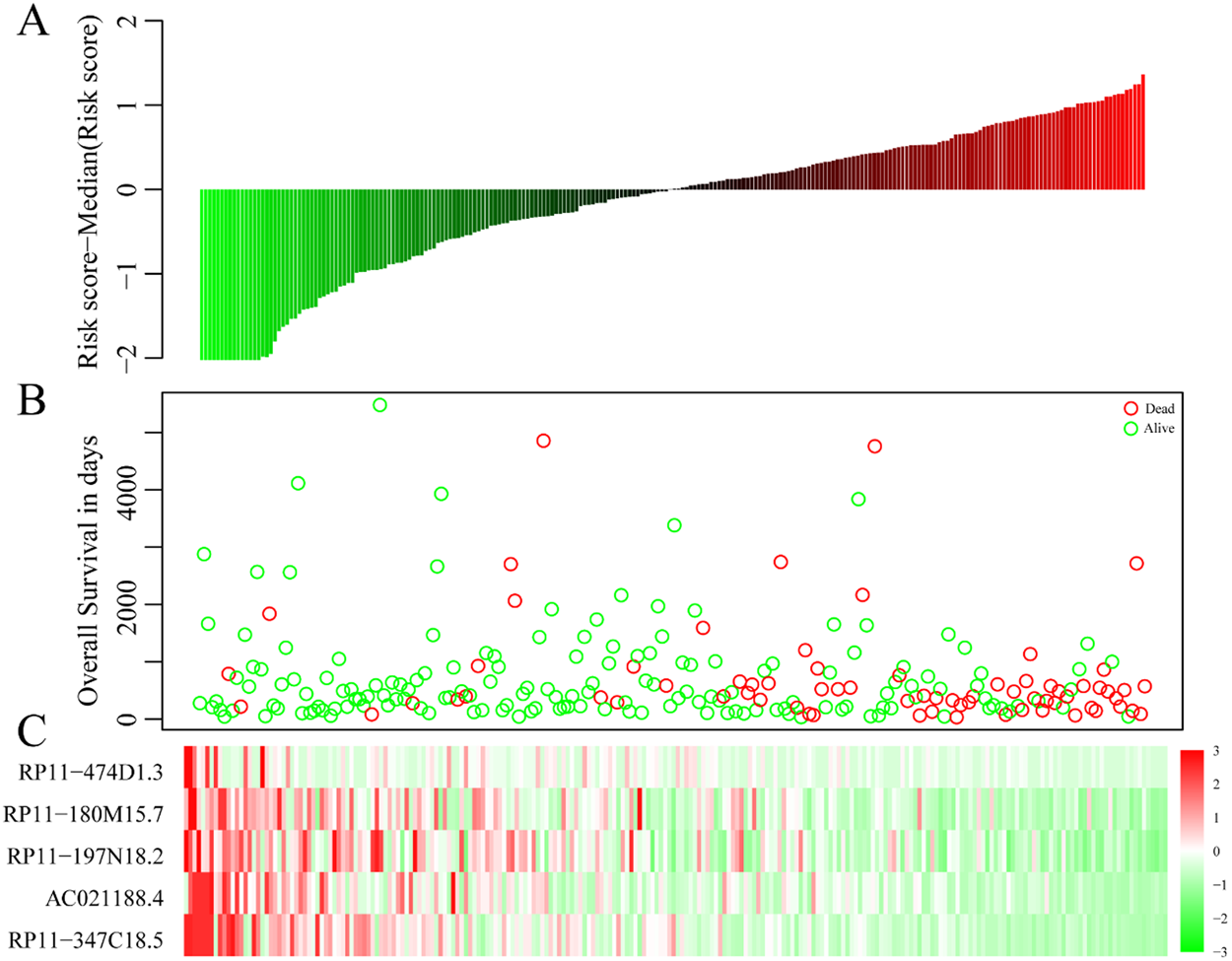

A prognostic risk model was constructed from the 5 disease prognostic signature lncRNAs. The horizontal axis represents samples. (A) Samples sorted by risk score; (B) Disease prognosis and survival time corresponding to different risk scores in (A). Green, alive at follow-up, red, already deceased. The figure shows that as risk scores increased, patient mortality risk increased. (C) Expression levels of the 5 signature lncRNAs corresponding to different risk scores in (A). The figure shows that as the risk score increased, the expression levels of the 5 lncRNAs gradually decreased.
