Figure 2

From: A cAMP/CRP-controlled mechanism for the incorporation of extracellular ADP-glucose in Escherichia coli involving NupC and NupG nucleoside transporters

Figure 2The alt text for this image may have been generated using AI.

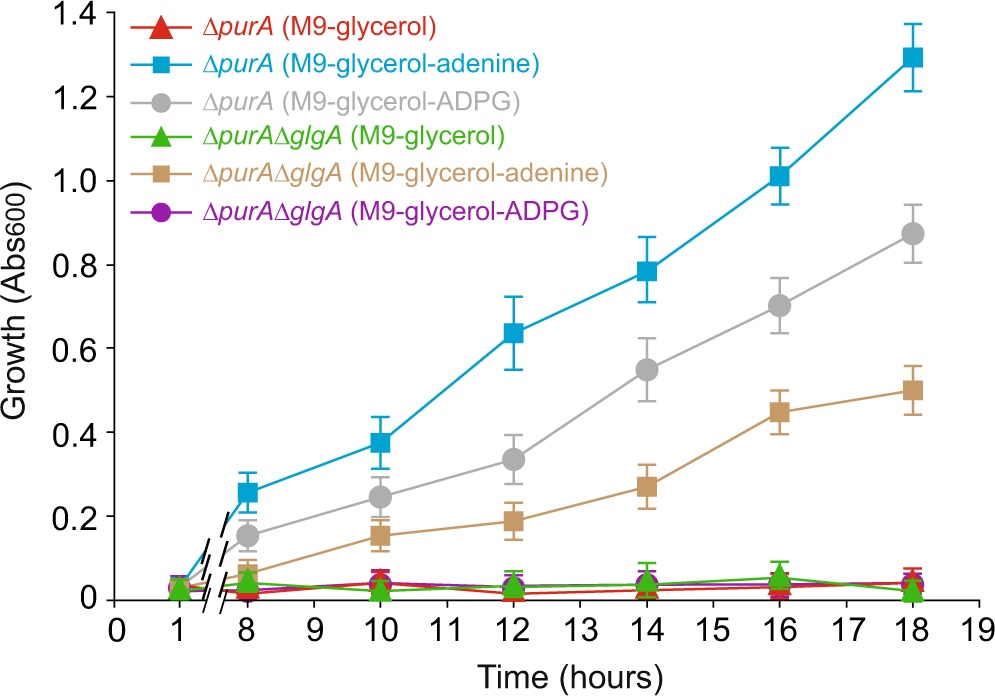

ADP released by GlgA from ADPG entering the cell can feed the adenine nucleotide pool. Growth of ΔpurA and ΔpurAΔglgA cells cultured in liquid M9 medium supplemented with 2% (v/v) glycerol (M9-glycerol) with or without 100 μM adenine or ADPG supplementation. Values represent means ± SE obtained from four independent experiments with 3 replicates for each experiment.
