Figure 4
From: Intraventricular Vortex Interaction between Transmitral Flow and Paravalvular Leak

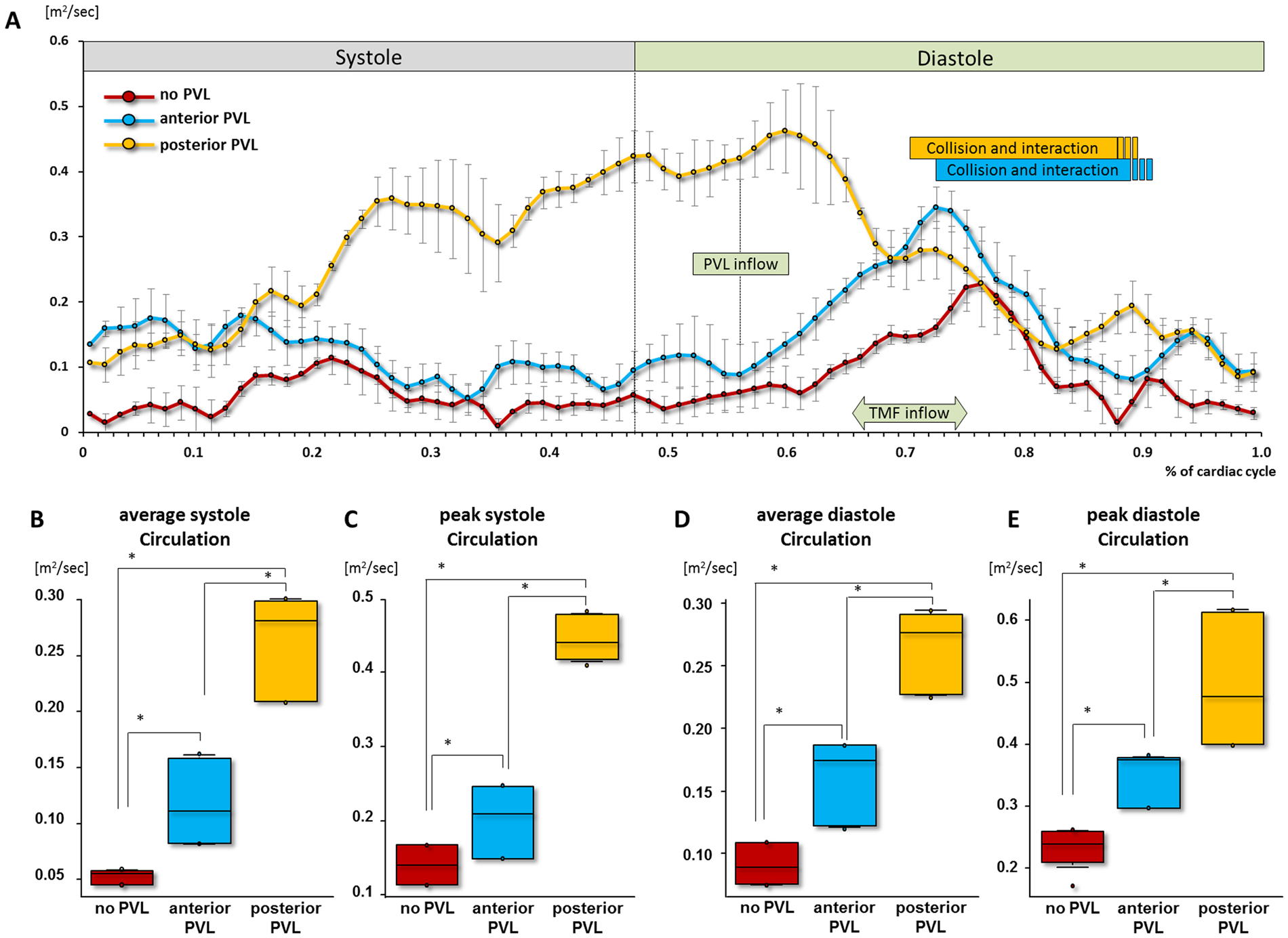

Quantitative assessment of circulation. (A) The time course of circulation throughout cardiac cycle. (B–E) Comparison of average and peak circulation between no PVL, anterior and posterior PVL. Red, blue and yellow depict no-PVL, anterior PVL and posterior PVL, respectively. *p < 0.05.
