Figure 5
From: Intraventricular Vortex Interaction between Transmitral Flow and Paravalvular Leak

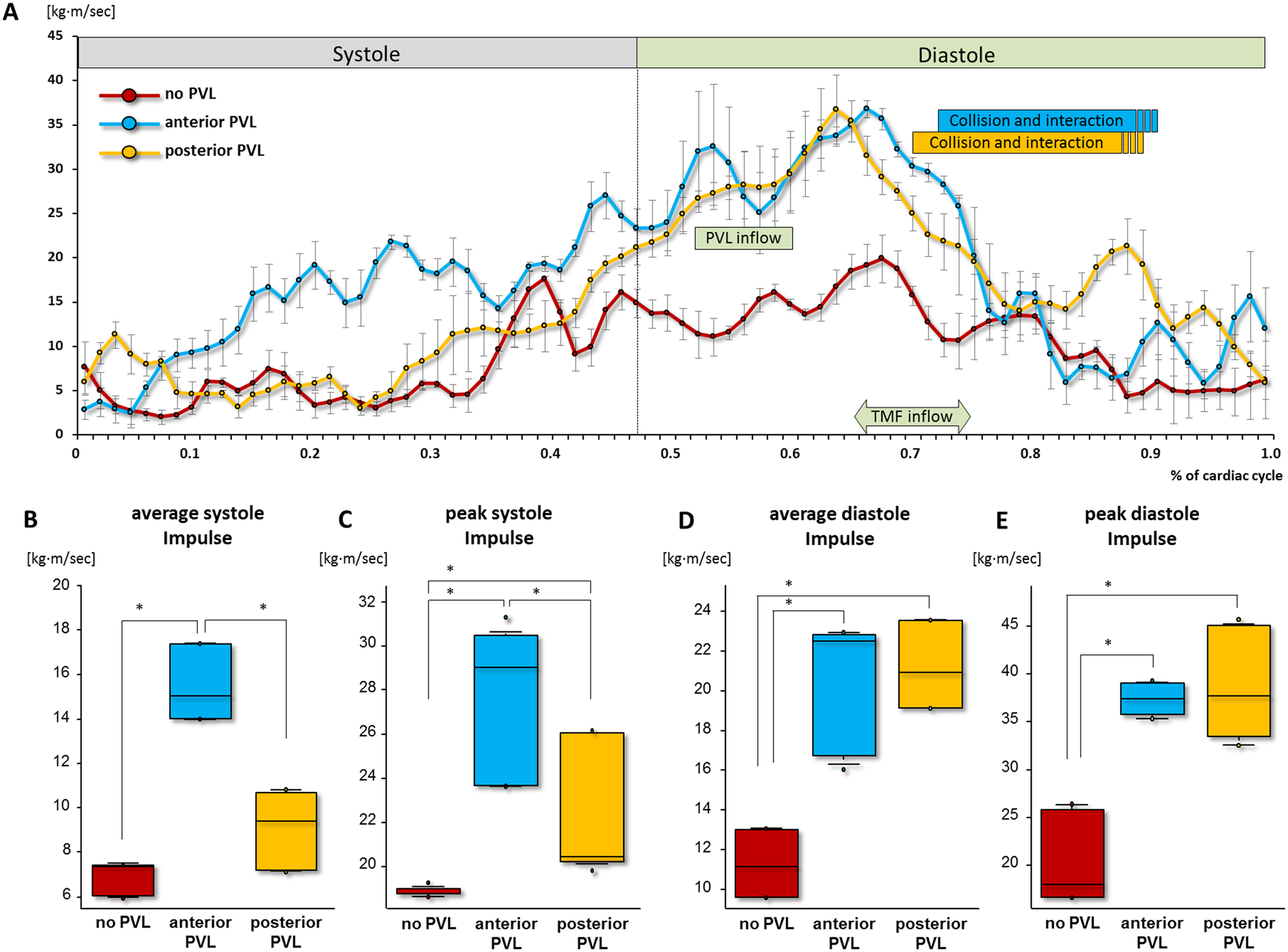

Quantitative assessment of impulse. (A) The time course of impulse throughout cardiac cycle. (B–E) Comparison of average and peak impulse between no PVL, anterior and posterior PVL. Red, blue and yellow depict no-PVL, anterior PVL and posterior PVL, respectively. *p < 0.05.
