Figure 8

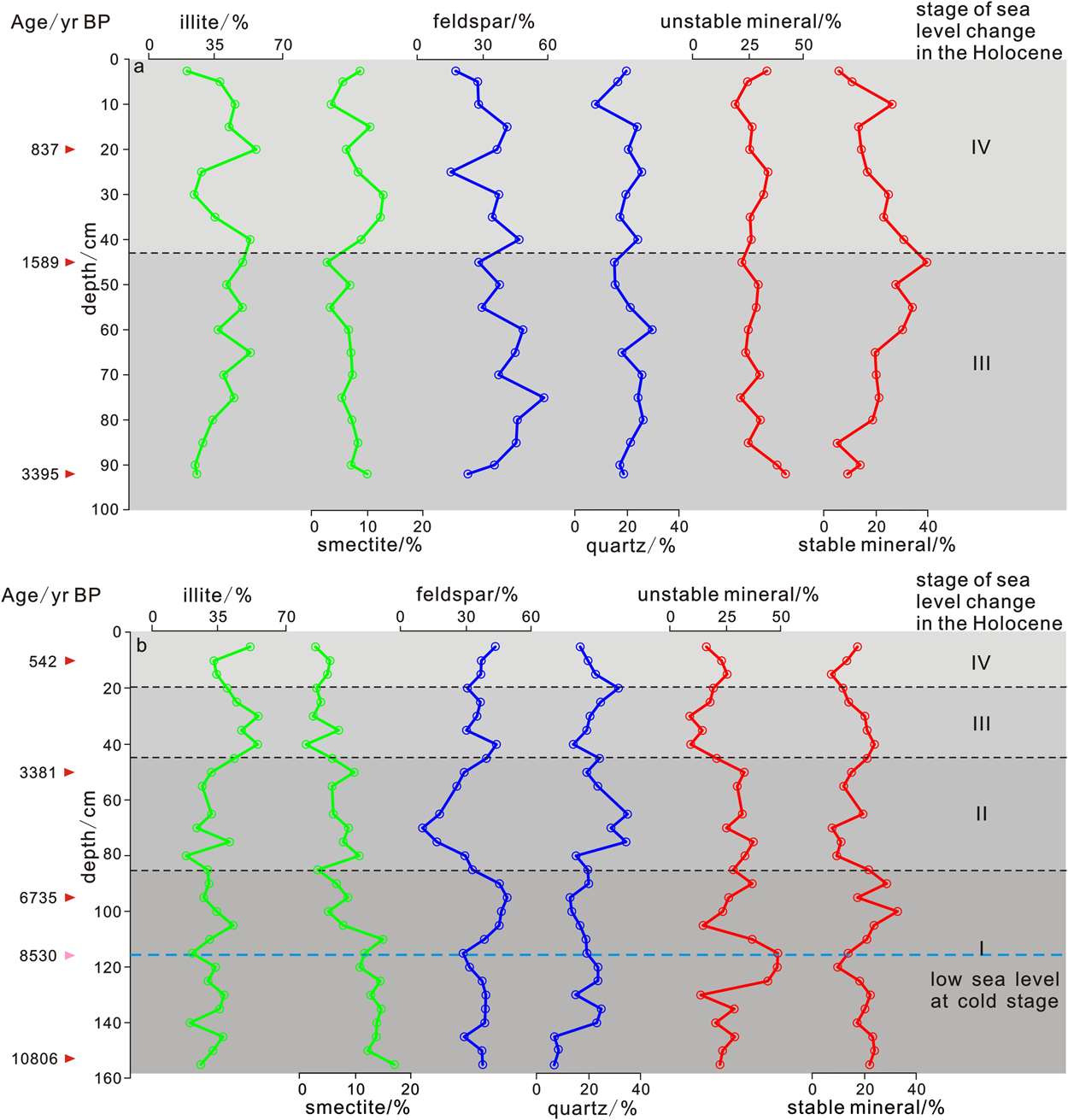

Main mineral profile of Core ZC1(a) and ZC2(b). The percentage content of typical mineral as illite, smectite, feldspar, quartz, unstable mineral and stable mineral are showed in this profile diagram.
Figure 8 | Scientific Reports
Main mineral profile of Core ZC1(a) and ZC2(b). The percentage content of typical mineral as illite, smectite, feldspar, quartz, unstable mineral and stable mineral are showed in this profile diagram.
