From: Functional eubacteria species along with trans-domain gut inhabitants favour dysgenic diversity in oxalate stone disease

Figure 6

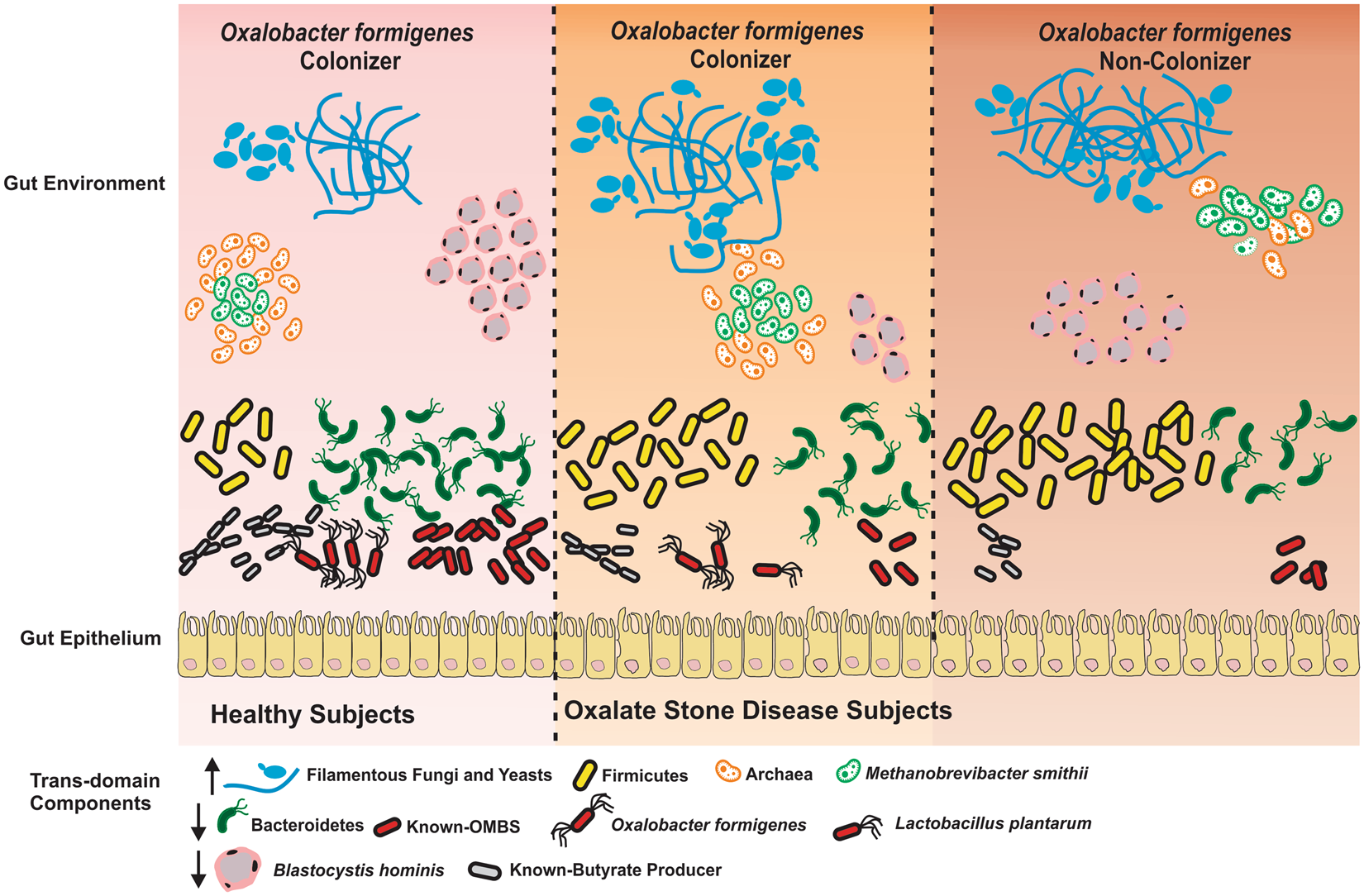

Diagrammatic illustration of actual observations in all tested subjects. Eubacterial species diversity and functional diversity was depicted using amplicon sequencing and qPCR assays. Other Trans-domain diversity was depicted using amplicon sequencing based analysis only. Arrow indicates the abundance level of trans-domain components in disease state.
