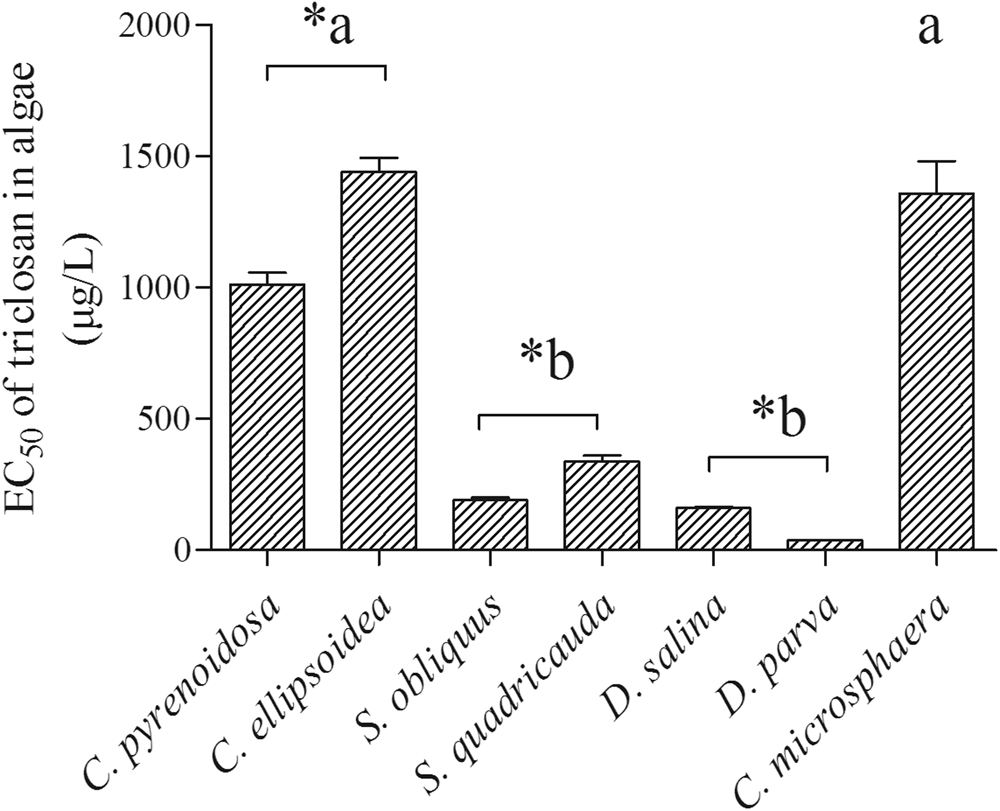

Figure 3
From: Sensitivities of seven algal species to triclosan, fluoxetine and their mixtures
The EC50 of 7 algal species exposed to triclosan for 96 h. And mean ± standard error, n = 4. Asterisk (*) indicated significant difference (P < 0.05) within the same genus. The letters indicated significant differences (P < 0.05) among genera.
