Figure 5

From: Genomic analysis of Acinetobacter baumannii prophages reveals remarkable diversity and suggests profound impact on bacterial virulence and fitness

Figure 5

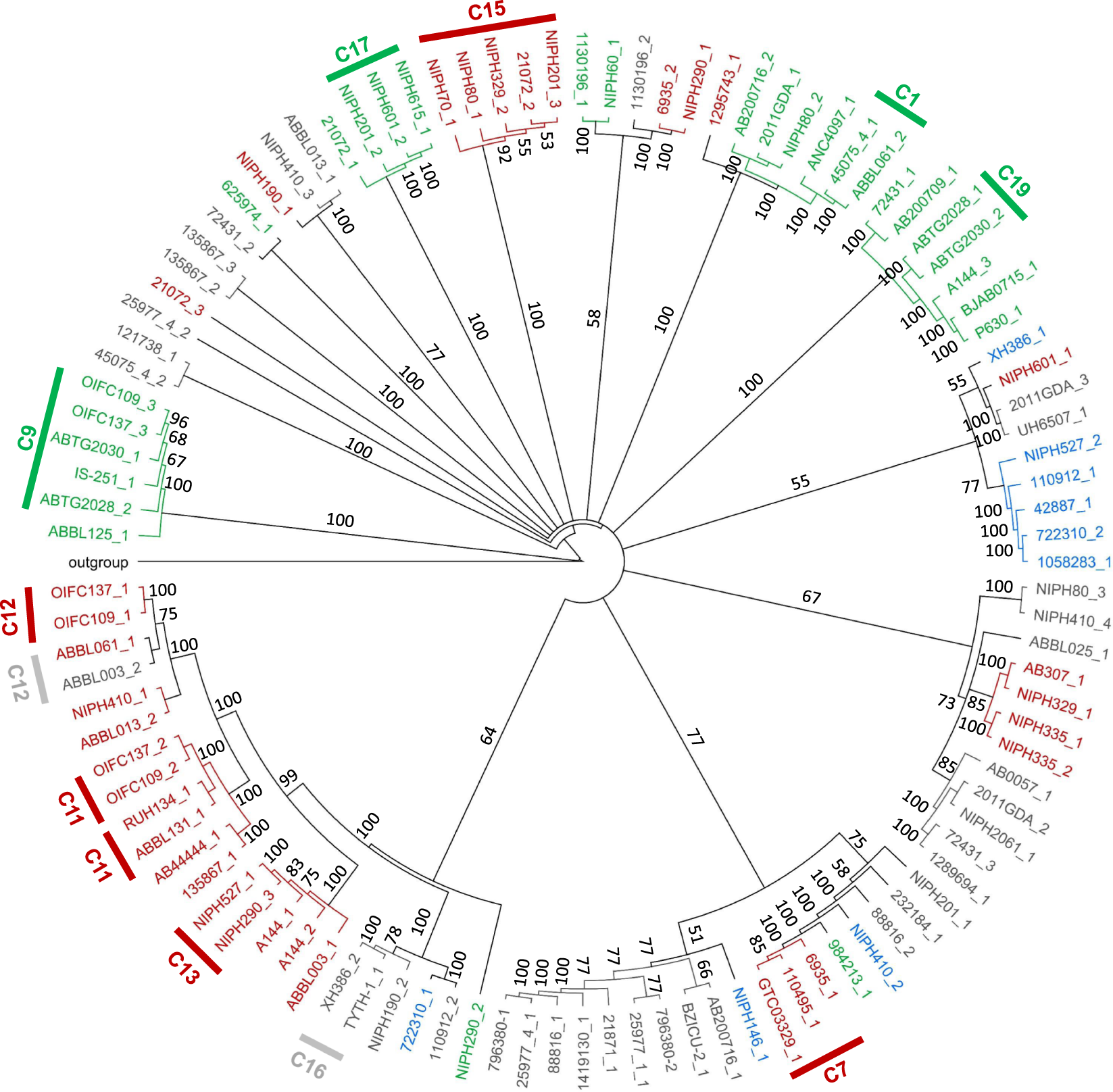

Phylogenetic tree of prophage genomic sequences. Tree was constructed using the Tamura-Nei genetic distance model and the neighbor-joining tree building method in Geneious Tree Builder (Geneious version 9.1.8), with boostrapping set to 100 and tree rooted using Acinetobacter baumannii plasmid pNaval18-231 as the outgroup. Tree branches are proportional to branch length, and branch labels represent bootstrap percentages. Clusters of prophages with genome identities above 90% are indicated in the tree. Red: Siphoviridae; Green: Myoviridae; Blue: Podoviridae; Grey: family unknown.
