Figure 4
From: Effects of Precipitates Evolution on Low Stress Creep Properties in P92 Heat-resistant Steel

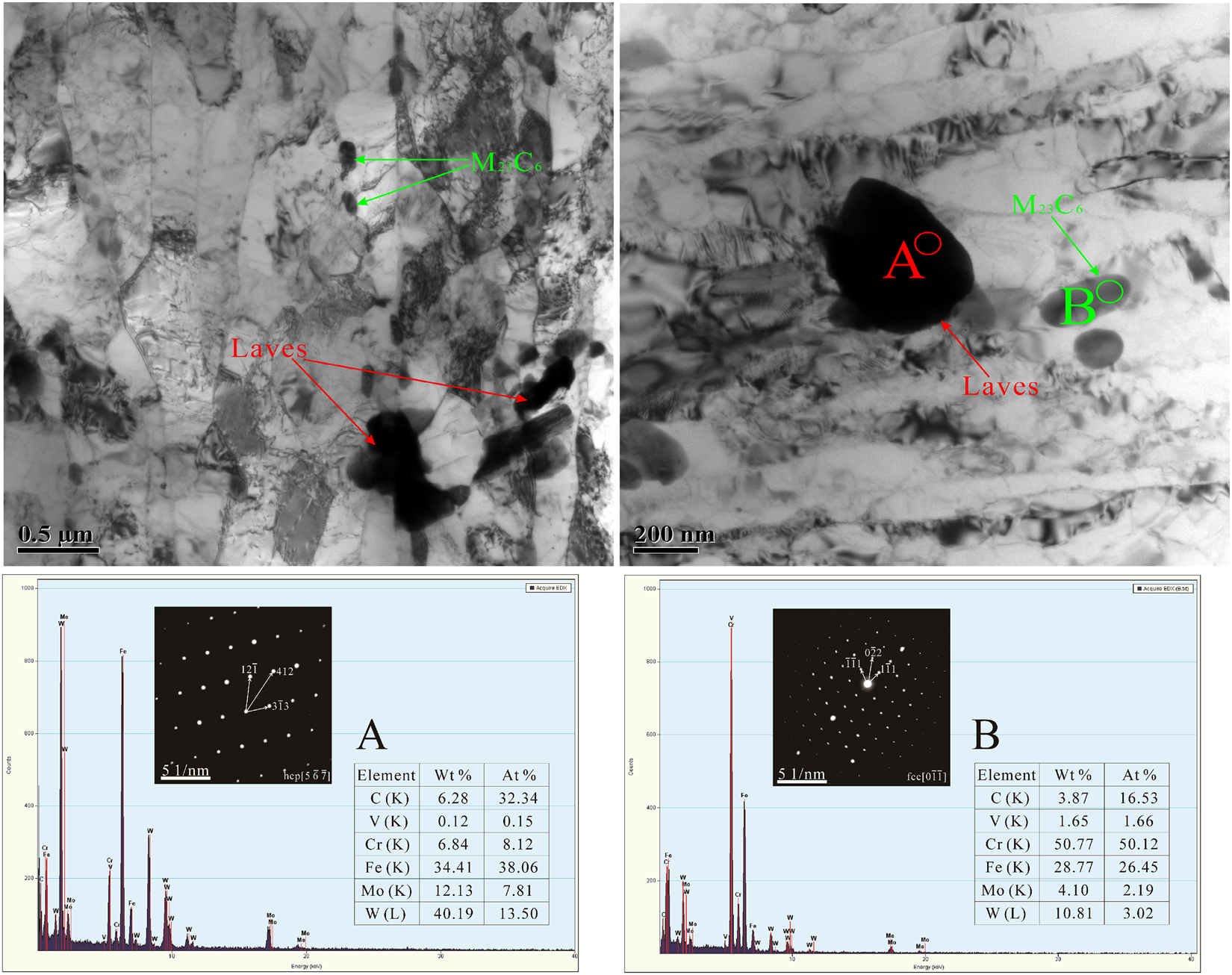

TEM micrographs of P92 heat-resistant steels following thermal aging for 3000 h (a,b) and the corresponding SAED patterns and EDS diagrams of particles A (c) and B (d).
