From: Bacterial periplasmic nitrate and trimethylamine-N-oxide respiration coupled to menaquinol-cytochrome c reductase (Qcr): Implications for electrogenic reduction of alternative electron acceptors

Figure 5

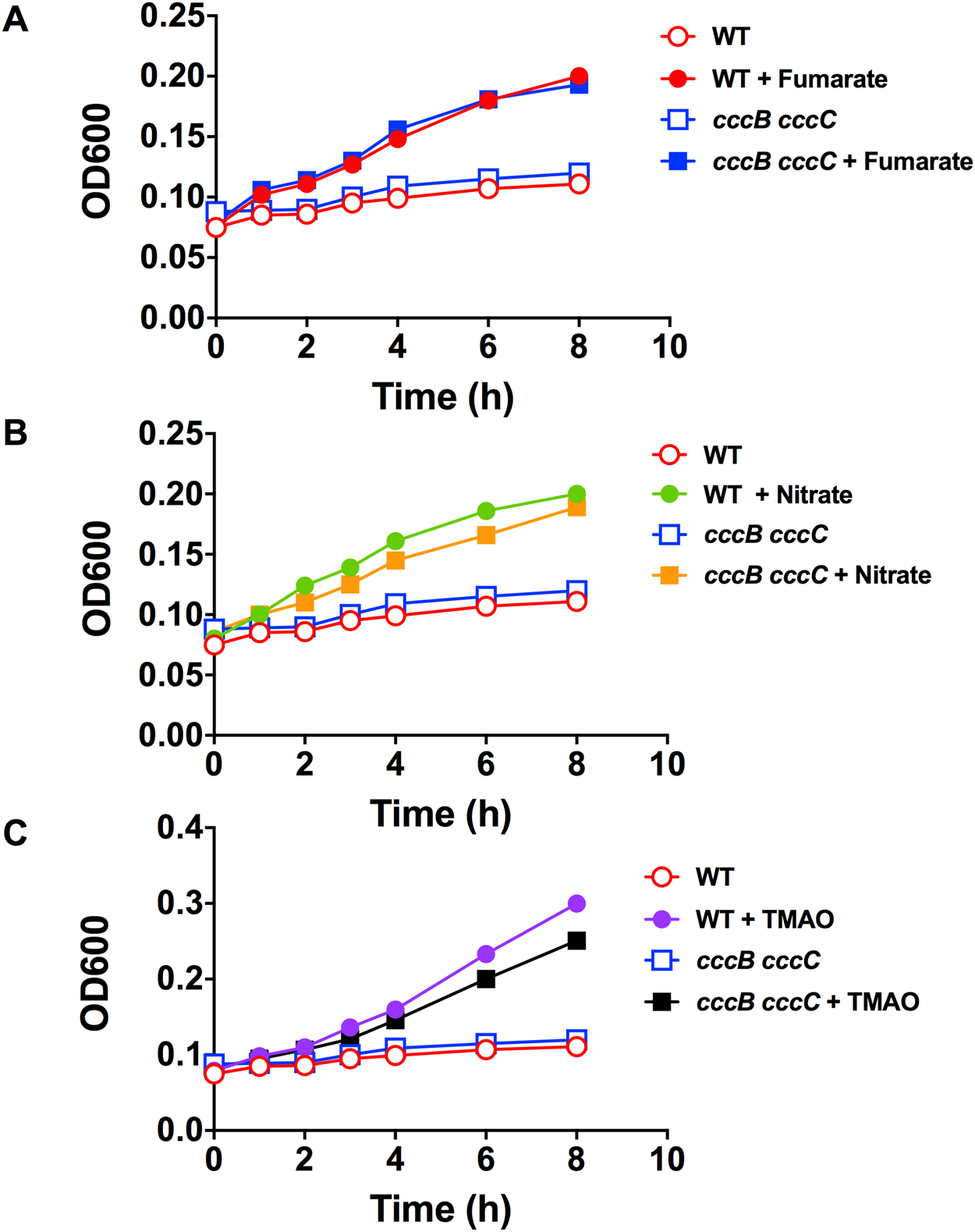

The c-type cytochromes CccB (Cj1020) and CccC (Cj0037) are not required for oxygen-limited growth on fumarate, nitrate or TMAO. Panels (A–C) show representative growth curves of wild-type and the cccB cccC double mutant in static MHS media alone (open symbols) or in the presence of 20 mM sodium fumarate (closed symbols in A), 20 mM sodium nitrate (closed symbols in B) or 20 mM TMAO (closed symbols in C). The open symbol data are controls for the electron acceptor dependent growth and are the same in each panel.
