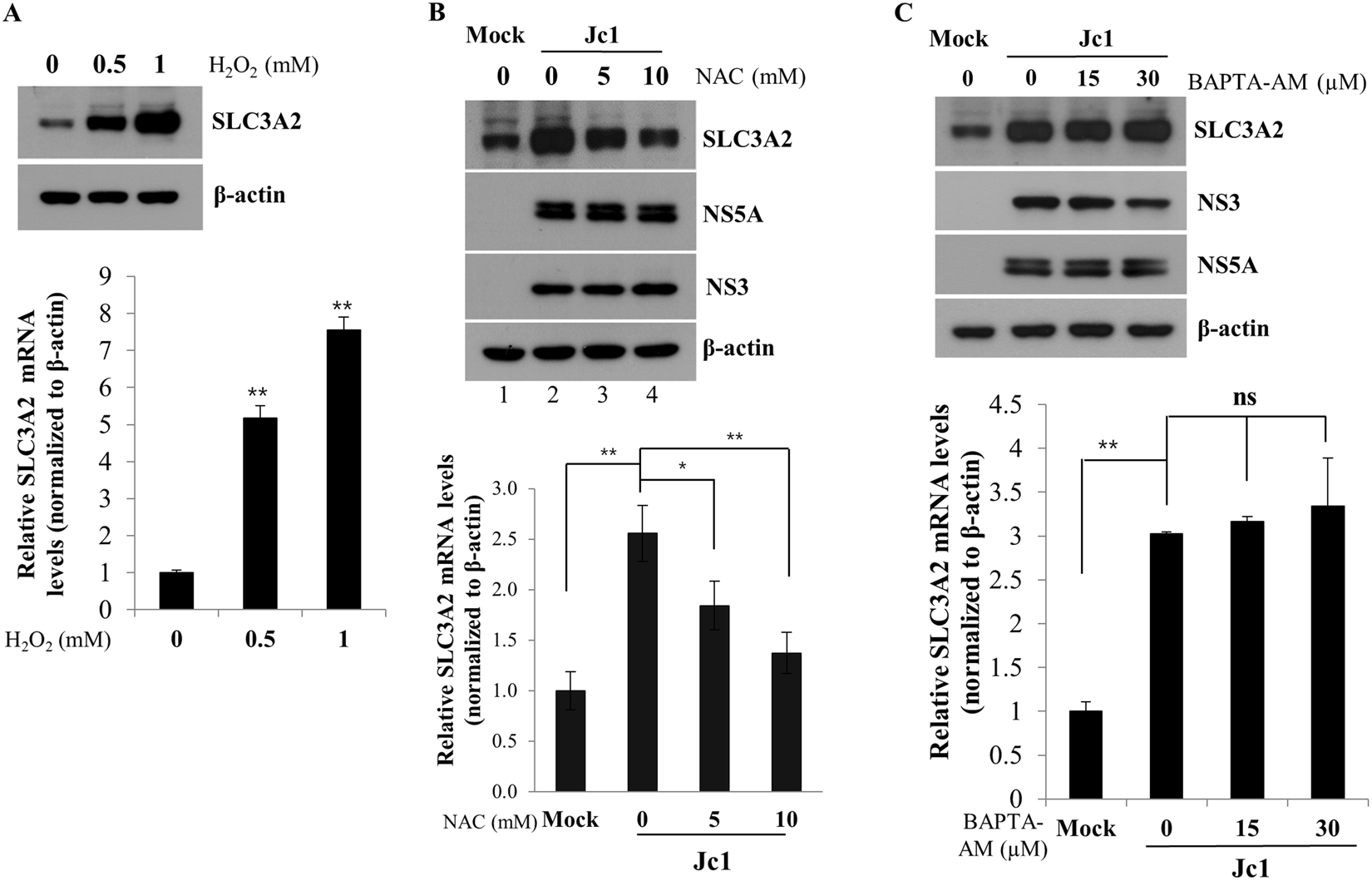

Figure 2
From: Hepatitis C Virus Modulates Solute carrier family 3 member 2 for Viral Propagation

SLC3A2 expression is upregulated by HCV-induced oxidative stress. (A) Huh7.5 cells were either left untreated or treated with increasing amounts of H2O2. At 24 h after treatment, total cell lysates were immunoblotted with the indicated antibodies (upper panel) and mRNA levels of SLC3A2 were analyzed by qRT-PCR (bottom panel). (B) Huh7.5 cells were either mock infected or infected with HCV Jc1. At 6 days postinfection, cells were either left untreated or treated with increasing amounts of NAC. At 24 h after treatment, total cell lysates were immunoblotted with the indicated antibodies (upper panel) and mRNA levels of SLC3A2 were analyzed by qRT-PCR (bottom panel). (C) Huh7.5 cells were either mock-infected or infected with HCV Jc1. At 6 days postinfection, cells were either left untreated or treated with increasing amounts of BAPTA-AM. At 24 h after treatment, total cell lysates were immunoblotted with the indicated antibodies (upper panel) and mRNA levels of SLC3A2 were analyzed by qRT-PCR (bottom panel).
