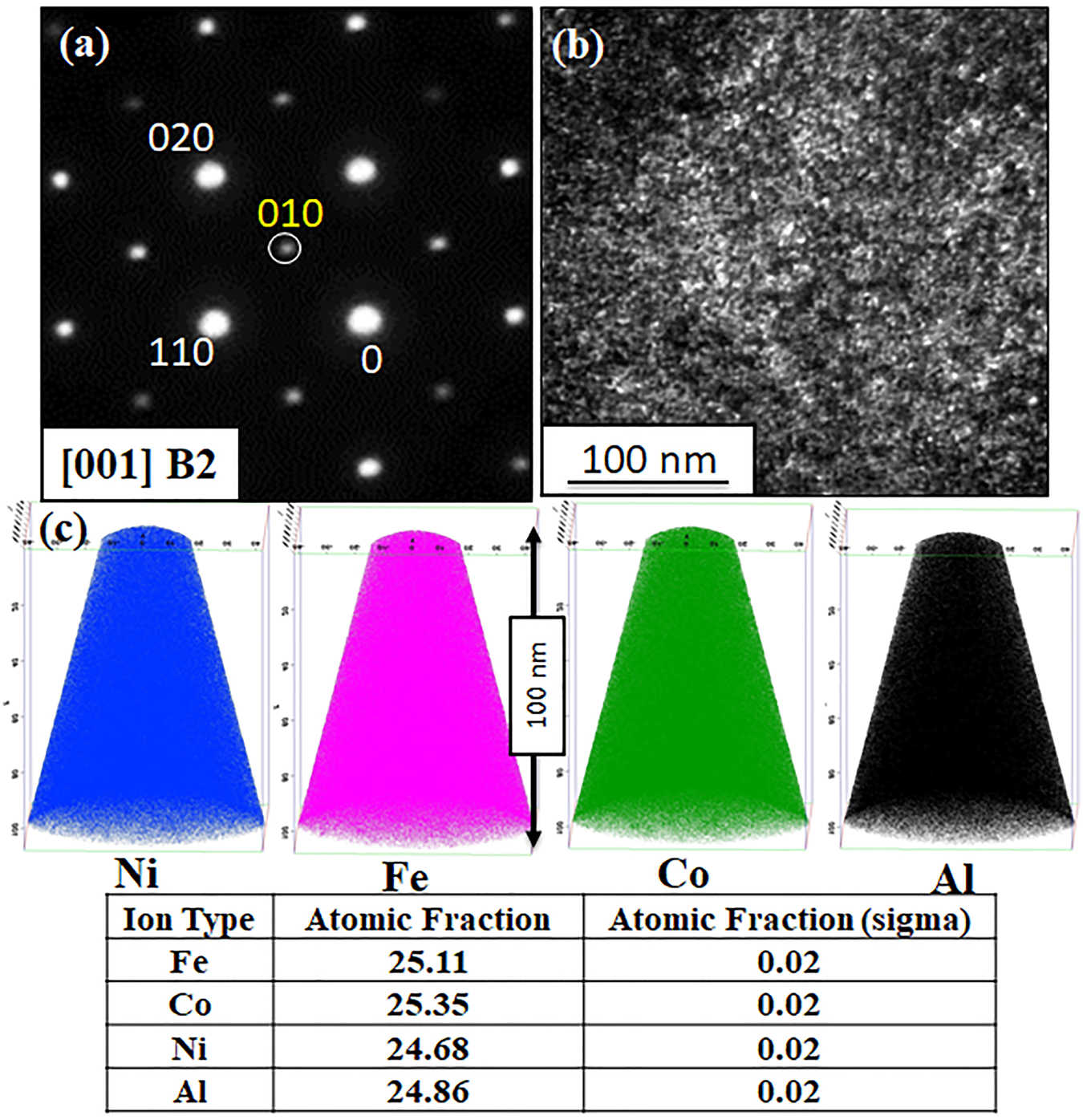

Figure 2
TEM and APT results of AlCoFeNi alloy annealed for 15 h at 1000 °C. (a) Selected area diffraction (SAD) pattern from [001]B2 ZA (b) corresponding dark-field TEM image taken using the encircled superlattice spot (c) ionic 3D reconstructions of Ni, Fe, Co and Al atoms, respectively.
